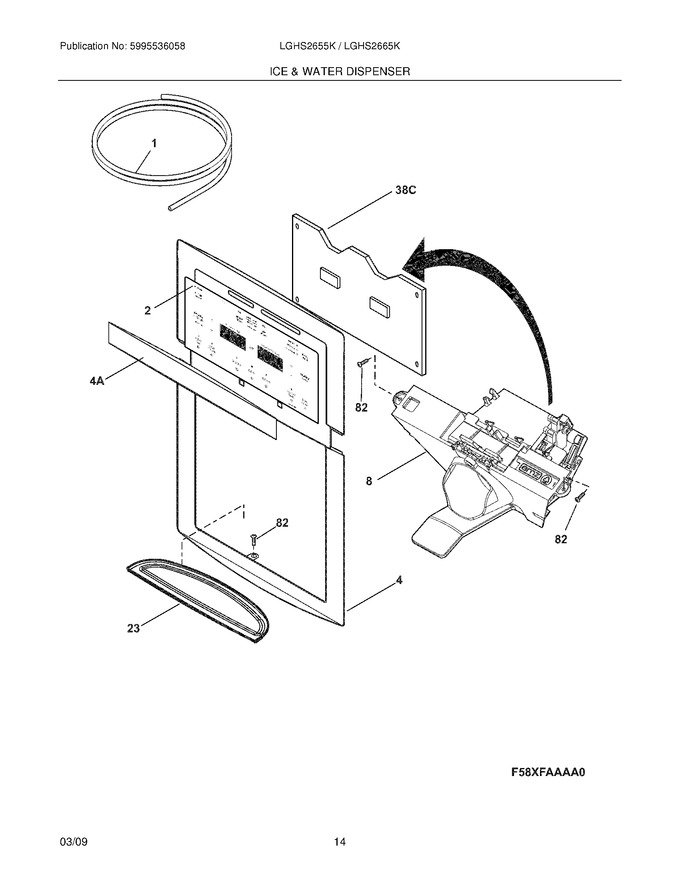

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241850615 | Tube-water Inlet,inlet Valve ,to Filter (Replaces: 218976915) |
|
$ 38.59 | |||||
| 4 | 241946806 | Cover-module,white |
|
$ 88.20 | |||||
| 8 | 242074214 | Module-dispenser,white (Replaces: 241753409) |
|
$ 285.08 | |||||
| 23 | 241947001 | Drip Tray,white |
|
$ 22.05 | |||||
| 82 | 5304453707 | Screw-no.8-18 X 1/2,no.6 Hd Plask (Replaces: 240363402) |
|
Immediately | $ 17.69 | ||||
| F2 | 241973809 | Switch-membrane |
|
$ 182.43 | |||||
| F38C | 241973711 | Board-control (Replaces: 241973702) |
|
Immediately | $ 385.93 | ||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 352.64 | |||||
| NI | 240561701 | Seal-water Inlet,inlet Valve ,to Ice Maker |
|
Immediately | $ 22.84 | ||||
| NI | 218976429 | Tube-water Inlet,97.50`` ,brown/tan |
|
$ 44.89 | |||||
| NI | 218976419 | Tube-water Inlet,valve To Door |
|
$ 25.20 |
