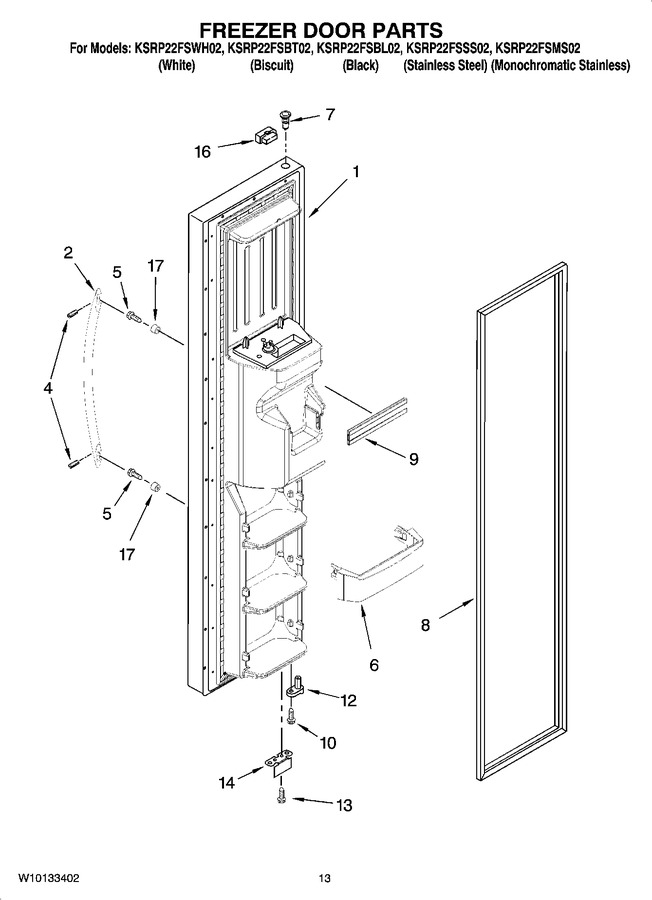

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2327694W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2327694T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2327694B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2327687SB		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2327687SAP		Freezer Door (includes Item 8 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
2	2304832W		Handle (includes 4) (white)		Appelez-nous	-
2	2304832T		Handle (includes 4) (biscuit)		Appelez-nous	-
2	2304832B		Handle (includes 4) (black)		Appelez-nous	-
2	2304832SK		Handle (includes 4) (stainless Steel)		Appelez-nous	-
4	WPW10010150		Screw (black)   (Replaces: W10010150)				$ 7.88
4	W11366418		Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
5	WP488163		Screw   (Replaces: 488208)				$ 7.54
6	2171071K		Trivet, Shelf (3)		Appelez-nous	-
7	2301049		Thimble, Top (for Stainless Steel Models)				$ 75.42
7	WP2182181		Thimble, Top (for White, Black Biscuit, And Monochromatic Stainless Models)   (Replaces: 2182181)				$ 7.76
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2221312)				$ 310.39
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301)				$ 308.19
9	WPW10307490		Trim, Door Shelf   (Replaces: 2212375)			Immediately	$ 23.11
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
16	1128252		Connector		Appelez-nous	-
17	WPW10170540		Stud   (Replaces: 2219698)			Immediately	$ 8.51
