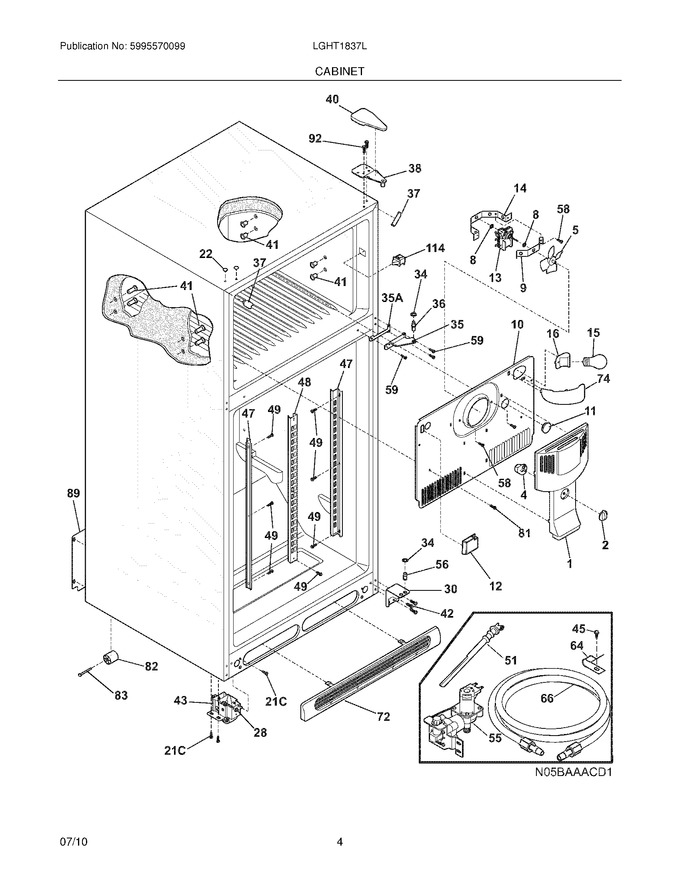

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241652306		Cover-fan		Appelez-nous	-
2	240367001		Knob-damper Control			Immediately	$ 64.04
4	241523701		Damper-fan Cover				$ 19.16
8	240438003		Bushing-motor Mtg,(2)   (Replaces: 242014101)				$ 19.38
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	241652213		Cover-evap Coil				$ 96.65
11	5303208309		Plug-hole, Factory Test				$ 50.56
12	242101101		Cover,i/m Connection		Appelez-nous	-
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 19.38
15	5304511738		Light Bulb   (Replaces: 241560701)			Immediately	$ 26.96
22	215774901		Plug-button,white ,upr Hinge Holes			Immediately	$ 20.22
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 34.81
30	240314011		Bracket-lower Hinge,zinc			Immediately	$ 85.84
34	240311303		Washer,hinge ,nylon ,(2)			Immediately	$ 11.80
35	240313806		Bracket-ctr Hinge,zinc				$ 57.60
36	240516402		Pin-center Hinge		Appelez-nous	-
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.88
38	240313703		Bracket-upper Hinge   (Replaces: 240313702)			Immediately	$ 35.86
40	240354401		Cover-upper Hinge,white				$ 68.40
41	5304500407		Grommet,shelf Mtg ,1.25`` ,lh ,(4)   (Replaces: 5308009759)			Immediately	$ 7.09
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 15.75
43	5304499445		Roller Assy,front ,(2)   (Replaces: 240335006)			Immediately	$ 34.81
45	241500303		Screw,hex Washer Head ,8-18ab X 0.500   (Replaces: 241500301)			Immediately	$ 5.06
47	218233301		Channel-shelf Mtg,side ,(2)		Appelez-nous	-
48	5303292395		Channel-shelf Mtg,center				$ 157.34
49	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 13.39
51	241796405		Tube-water,ice Mold Fill ,extension   (Replaces: 241523501)				$ 20.48
56	240516502		Pin-lower Hinge				$ 80.89
58	5304456287		Screw,hex Washer Head ,8-15a X 0.500				$ 0.76
59	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 9.27
64	5304455846		Clamp,.31 Id ,steel ,water Tube				$ 11.81
66	218976921		Tube-water Inlet,valve To I.m.		Appelez-nous	-
72	241839405		Grille/kickplate,white				$ 67.73
74	240354302		Shield-light,frzr				$ 19.24
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 57.30
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 39.27
89	241733911		Cover-access,with Label   (Replaces: 241733907)				$ 56.12
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 14.96
114	241554901		Switch-light/lamp				$ 78.75
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
35A	240336802		Spacer-hinge,center			Immediately	$ 20.48
F13	241854501		Motor-evap Fan				$ 198.56
F16	218906802		Socket-light   (Replaces: 241513901)				$ 19.69
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 54.48
F55	242252603		Valve-water,single Solenoid , 60 Hz ,105/120 V   (Replaces: 241803701)			Immediately	$ 81.27
NI	5304434189		Seal-coil Cover   (Replaces: 240568601)				$ 74.03
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 20.48
NI	241500305		Screw,hex Washer Head ,8-18ab X 0.625   (Replaces: 241500304)				$ 3.37
NI	218931001		Clamp-motor Wiring,nylon ,w/adhesive Tape		Appelez-nous	-
NI	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 16.85
NI	5303321319		Paint,touch-up ,white			Immediately	$ 14.96
