SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

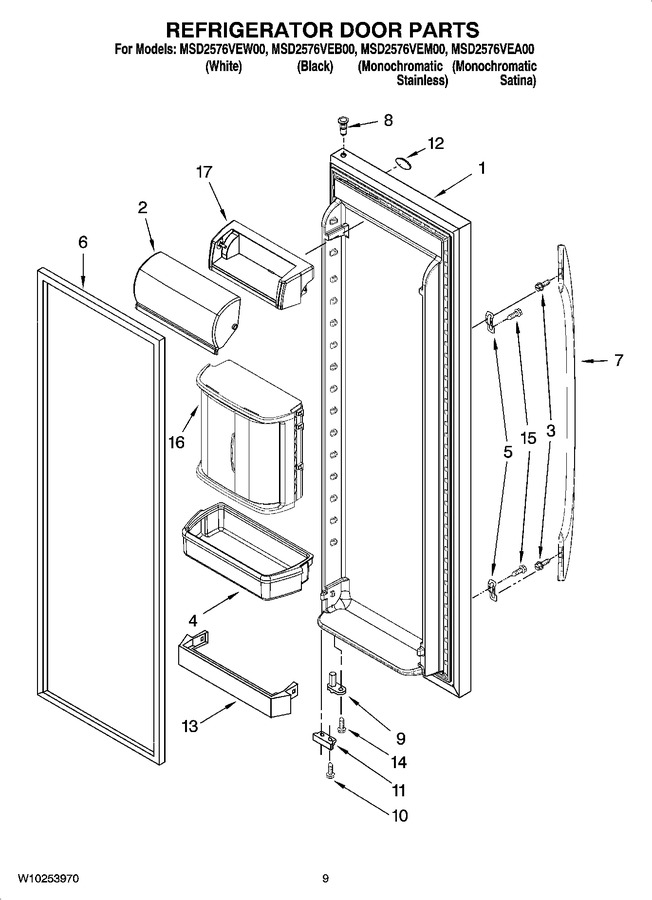

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10170819		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	W10170820		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
1	W10170821		Refrigerator Door (includes Item 6) (satina)		Appelez-nous	-
1	W10170817		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	W10128150		Door, Dairy		Appelez-nous	-
3	W10184500		Screw				$ 36.30
4	W10128129		Door Bin (2)		Appelez-nous	-
5	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2309529)				$ 251.49
6	WPW10136734		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2327163)				$ 319.42
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309528)			Immediately	$ 317.14
7	WPW10170749		Handle (white)   (Replaces: W10170745)				$ 299.26
7	WPW10170750		Handle (black)   (Replaces: W10170746)				$ 295.08
7	WPW10170739		Handle (stainless & Satina)   (Replaces: W10170739)				$ 346.58
8	WP2182181		Thimble-top   (Replaces: 2200087)				$ 7.76
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 10.87
11	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
11	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 67.14
13	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 76.32
14	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
15	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 8.69
16	W10252010		Beverage Chiller   (Replaces: W10128142)				$ 234.83
17	W10128148		Dairy Bin		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
