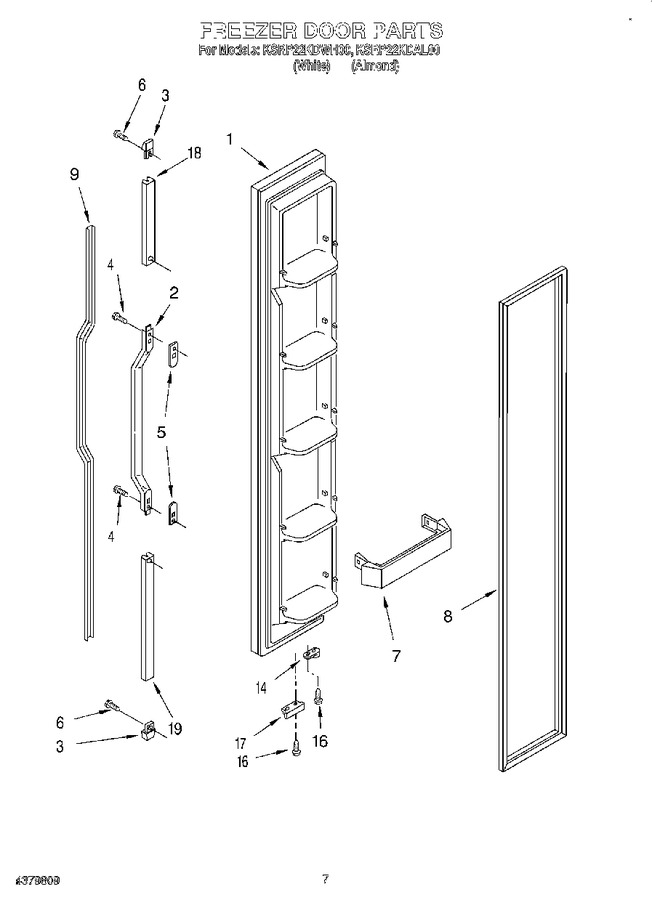

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2180048		Freezer Door (includes No.8) (white)		Appelez-nous	-
1	2180049		Freezer Door (includes No.8) (almond)		Appelez-nous	-
2	1107215		Handle Assembly		Appelez-nous	-
3	1107341		End Cap (2)		Appelez-nous	-
4	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
5	1107651		Spacer, Handle		Appelez-nous	-
6	489075		Screw		Appelez-nous	-
7	2171071		Shelf Bin (5)		Appelez-nous	-
8	2159072		Door Gasket, Magnetic (service)   (Replaces: 2177287)				$ 323.60
9	1117951		Insert, Handle (almond)		Appelez-nous	-
9	1117950		Insert, Handle (white)		Appelez-nous	-
14	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
16	WP489483		Screw   (Replaces: 489420)				$ 11.41
17	2155332		Bracket, Door Stop		Appelez-nous	-
18	1107241		Retainer, Insert		Appelez-nous	-
19	1117953		Retainer, Insert		Appelez-nous	-
