SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor/cond Motor/rear Rollers


03 - Controls


04 - Crisper Assembly


05 - Evap Fan/crisp Light/water Filter


06 - Evaporator/front Rollers/water Tank


07 - Fountain


08 - Freezer Compartment


09 - Freezer Door


10 - Freezer Shelves


11 - Handles (msd2641keb/keu/kew)


12 - Hinges & Toe Grille


13 - Ice Bucket Assy.


14 - Ice Maker


15 - Refrigerator Door


16 - Refrigerator Shelves


17 - Supplemental Information


18 - Wiring Information

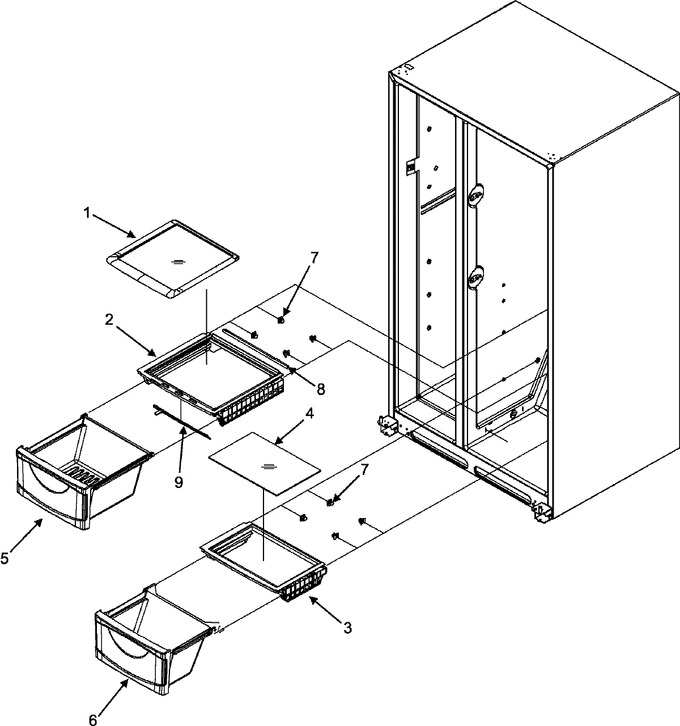

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006880		Shelf, Crisper Top	50	Appelez-nous	-
2	67004140		Frame, Crisper Shelf	50	Appelez-nous	-
3	67004247		Frame, Meat Shelf	50	Appelez-nous	-
4	67004132		Glass, Meat Shelf	50	Appelez-nous	-
5	67004350		Pan Assy., Lg Crisper	50	Appelez-nous	-
6	67005804		Pan, Meat	50	Appelez-nous	-
7	WP12603701		Support, Crisper Frame   (Replaces: 12603701)	50			$ 10.83
8	67004249		Seal, Crisper Frame (rear)	50	Appelez-nous	-
9	67004885		Slide, Control (wht)	50	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
