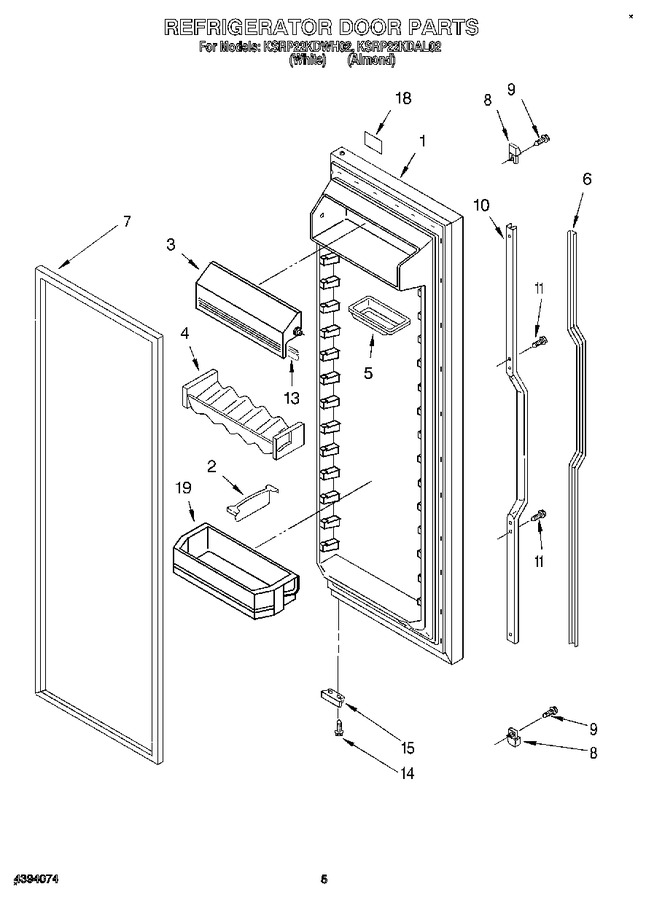

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2189710		Refrigerator Door (includes No.7) (almond)		Appelez-nous	-
1	2189709		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
2	2171283		Load Lock		Appelez-nous	-
3	2171078		Door, Compartment		Appelez-nous	-
4	1125981		Holder, Beverage		Appelez-nous	-
5	1125936		Butter, Tray		Appelez-nous	-
6	2173830		Insert, Handle (white)		Appelez-nous	-
6	2173831		Insert, Handle (almond)		Appelez-nous	-
7	2159073		Door Gasket, Magnetic (service)				$ 333.19
8	2173826		End Cap, Handle		Appelez-nous	-
9	489075		Screw		Appelez-nous	-
10	2173827		Retainer, Handle		Appelez-nous	-
11	WP489463		Screw   (Replaces: 489463)				$ 8.25
13	2159124		Gasket, Door Compartment		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	2155332		Bracket, Door Stop		Appelez-nous	-
18	2168800		Nameplate (white Model)		Appelez-nous	-
18	2168991		Nameplate (almond Model)		Appelez-nous	-
19	2171063		Shelf Bin (4)		Appelez-nous	-
