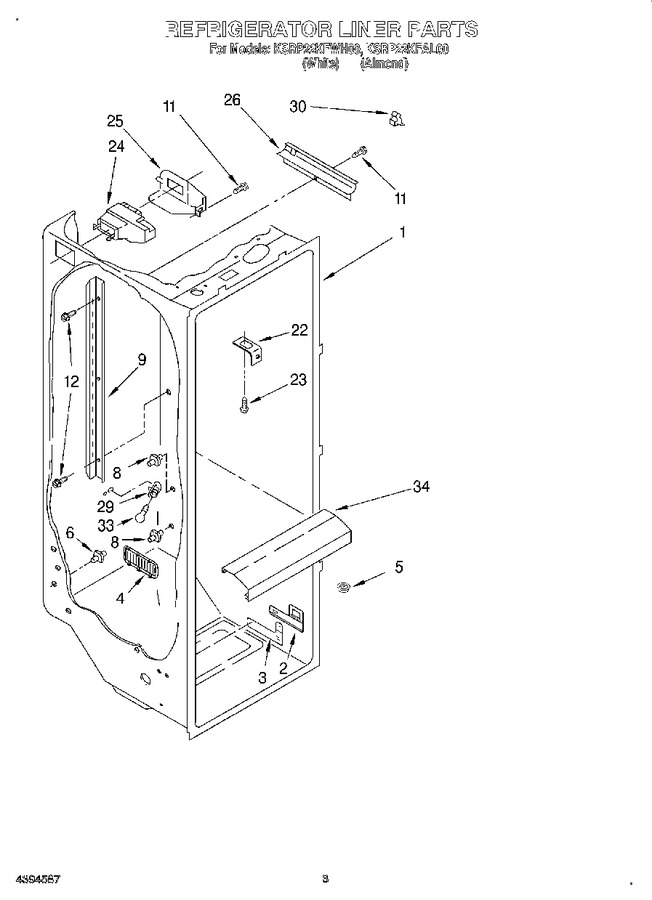

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 91.28
3	2182757		Slide Meat Pan Control				$ 75.15
4	2182147		Louver		Appelez-nous	-
5	2171846		Release Valve				$ 18.99
6	4388539		Stud (2)   (Replaces: 2172943)				$ 17.54
8	4388538		Stud (10)   (Replaces: 1110718)			Immediately	$ 31.34
9	2181796		Ladder, Shelf (2)		Appelez-nous	-
11	W10759522		Screw (2)   (Replaces: 486298)				$ 7.75
12	WP488729		Screw   (Replaces: 487539)			Immediately	$ 7.79
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 34.38
23	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
24	WPW10151374		Air Diffuser Assembly   (Replaces: 2176173)			Immediately	$ 99.78
25	2152019		Cover, Air Diffuser				$ 86.03
26	2150331		Cover, Conduit				$ 24.40
29	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.42
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
34	2174436		Light Lens				$ 51.38
