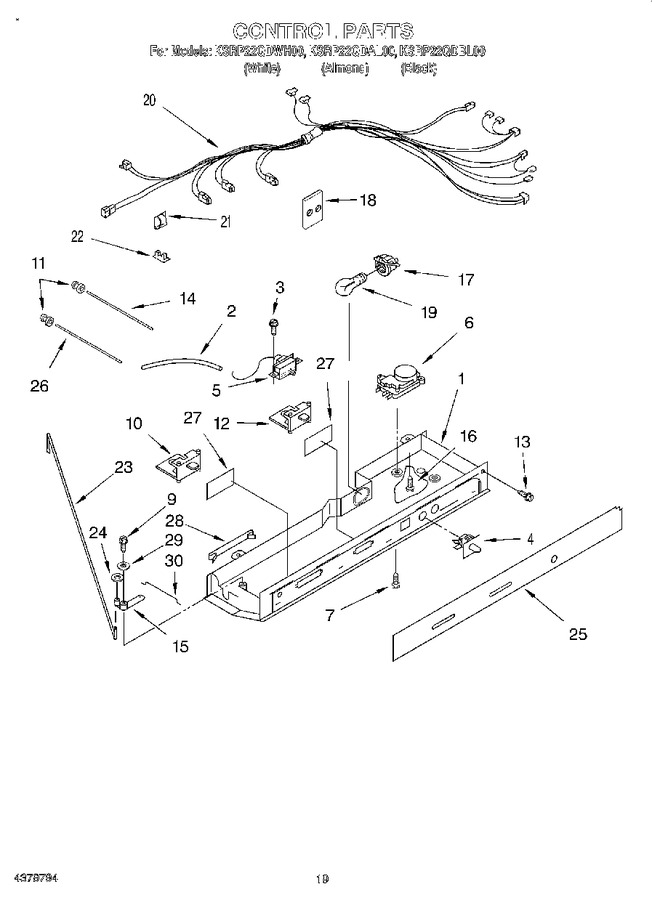

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2175511		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 1115241)				$ 8.35
3	2006254		Screw (3)   (Replaces: 489214)				$ 13.79
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
5	2175515		Thermostat		Appelez-nous	-
6	W10822278		Defrost Timer (10 Hr.)   (Replaces: 2162046)			Immediately	$ 34.44
7	489392		Screw (2)   (Replaces: 489398)				$ 14.02
9	627068		Screw				$ 12.73
10	2181741		Slide, Air Control   (Replaces: 2175512)				$ 95.01
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 22.28
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 8.05
14	2179920		Light Bar (rc)				$ 37.08
15	2161306		Arm, Pivot				$ 9.65
16	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
18	2172931		Heat Shield				$ 73.90
19	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
20	2149186		Control Box Harness		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 8.14
22	1115375		Clip, Wiring				$ 11.15
23	2161308		Connecting Rod				$ 180.72
24	489391		Fastener, Push-on				$ 7.52
25	2175514		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2175513		Window		Appelez-nous	-
28	1125811		Clip, Control Box		Appelez-nous	-
29	489203		Spring Washer		Appelez-nous	-
30	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
30	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
30	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
30	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
30	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
30	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
30	350956		Enamel, Almond (13 Oz. Spray Can)				$ 54.01
30	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
30	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
30	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
30	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
30	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
30	2161307		Connecting Rod (short)		Appelez-nous	-
30	350942		Primer White (13 Oz. Spray Can)				$ 94.14
30	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
30	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
30	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
30	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
30	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
30	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
30	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
30	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
30	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
30	833938		Kit, Terminal Connector				$ 8.47
30	WPW10312301		Ice Container Asm   (Replaces: 1126248)				$ 430.90
30	WPW10312301		Ice Crusher Asm   (Replaces: 2152735)				$ 430.90
30	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	LIT2180060		Energy Label		Appelez-nous	-
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT2176838		Service And Wiring Sheet		Appelez-nous	-
	LIT2161476		Use & Care Guide		Appelez-nous	-
	1117510		Torx Key				$ 5.84
