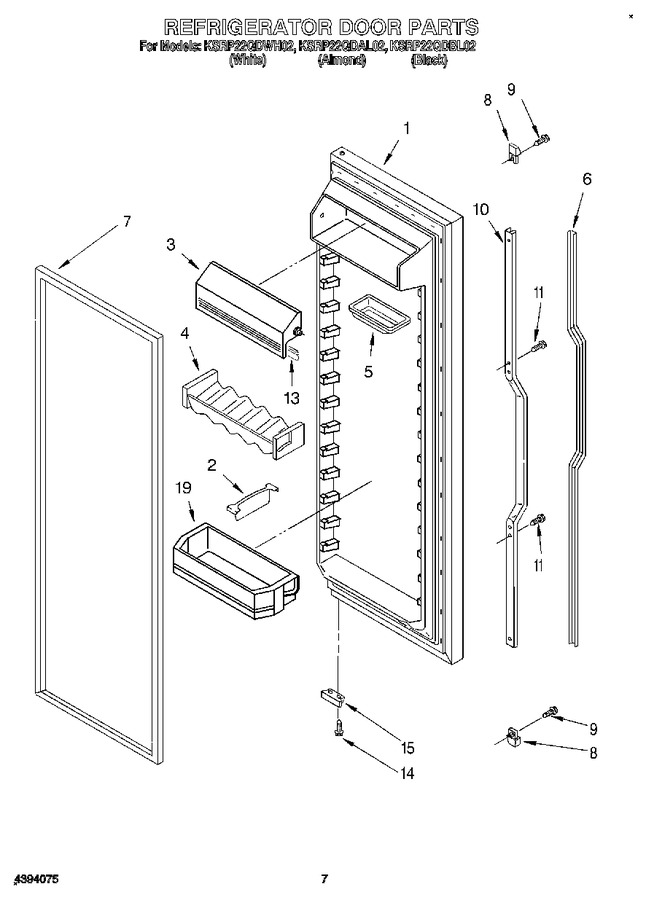

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2189709		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2189710		Refrigerator Door (includes No.7) (almond)		Appelez-nous	-
1	2189711		Refrigerator Door (includes No.7) (black)		Appelez-nous	-
2	2171283		Load Lock		Appelez-nous	-
3	2171078		Door, Compartment		Appelez-nous	-
4	1125981		Holder, Beverage		Appelez-nous	-
5	1125936		Butter, Tray		Appelez-nous	-
6	2173830		Insert, Handle (white)		Appelez-nous	-
6	2173832		Insert, Handle (black)		Appelez-nous	-
6	2173831		Insert, Handle (almond)		Appelez-nous	-
7	2159073		Door Gasket, Magnetic (service) (mist Beige)				$ 333.19
7	2159081		Door Gasket, Magnetic (service) (black)				$ 335.58
8	2173826		End Cap, Handle		Appelez-nous	-
9	489075		Screw		Appelez-nous	-
10	2173827		Retainer, Insert		Appelez-nous	-
11	WP489463		Screw   (Replaces: 489463)				$ 8.25
13	2159124		Gasket, Door Compartment		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	2155334		Bracket, Door Stop (black)		Appelez-nous	-
15	2155332		Bracket, Door Stop (chrome)		Appelez-nous	-
19	4318417		Black Grille Kit		Appelez-nous	-
19	2171063		Shelf Bin (4)		Appelez-nous	-
19	4318336		Trim Kit		Appelez-nous	-
19	4210348		Black Acrylic Panel Kit		Appelez-nous	-
19	4211148		White Acrylic Panel Kit		Appelez-nous	-
19	4211147		Almond Acrylic Panel Kit		Appelez-nous	-
19	4318339		Handle Inserts (black)		Appelez-nous	-
19	4318340		Woodgrain Handle Inserts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
