SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

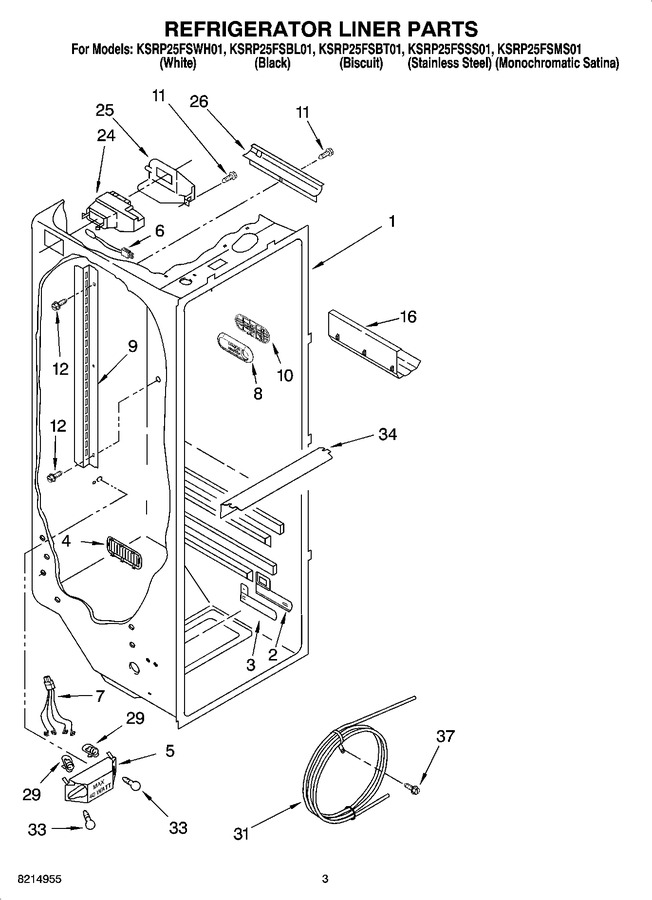

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2255613		Escutcheon, Meat Pan Control		Appelez-nous	-
3	2301339		Slide Meat Pan Control		Appelez-nous	-
4	2257741		Louver		Appelez-nous	-
5	2256035		Bracket, Dual Crisper Lights				$ 62.54
6	WP2188819		Thermistor   (Replaces: 2188819)			Immediately	$ 46.01
7	2311637		Wire Harness, Dual Crisper Lights   (Replaces: 2256037)				$ 140.23
8	2301234		Housing, Door Control		Appelez-nous	-
9	2206273		Ladder, Shelf (2)		Appelez-nous	-
10	2301235		Slide, Door Control		Appelez-nous	-
11	W10759522		Screw (2)   (Replaces: W10004810)				$ 7.75
12	WP489478		Screw   (Replaces: 489478)				$ 7.75
16	W10777924		Rack, Wine & Egg   (Replaces: 2179404)				$ 23.60
24	WP2216112		Air Diffuser Assembly   (Replaces: 2216112)			Immediately	$ 358.86
25	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 131.57
26	2150331		Cover, Conduit				$ 24.40
29	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
31	WP2256126		Reservoir   (Replaces: 2217199)				$ 168.85
33	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
34	2209769		Light Lens		Appelez-nous	-
37	488280		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
