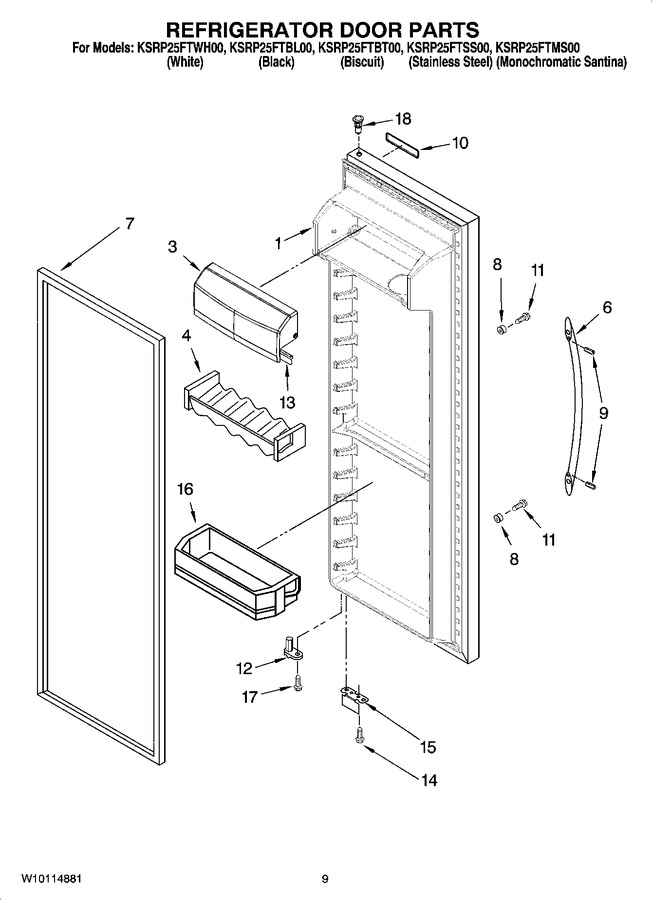

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2313299W		Refrigerator Door (includes 7) (white)		Appelez-nous	-
1	2313299B		Refrigerator Door (includes 7) (black)		Appelez-nous	-
1	2313299T		Refrigerator Door (includes 7) (biscuit)		Appelez-nous	-
1	2301184S		Refrigerator Door (includes 7) (stainless Steel)		Appelez-nous	-
1	2301184SZ		Refrigerator Door (includes 7) (monochromatic Satina)		Appelez-nous	-
3	2301486		Door, Compartment		Appelez-nous	-
4	2193409K		Beverage Holder (2)		Appelez-nous	-
6	2319727T		Handle (biscuit)		Appelez-nous	-
6	2319727S		Handle (stainless Steel)				$ 133.96
6	2319727B		Handle (black)				$ 109.87
6	2319727W		Handle (white)				$ 106.80
7	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
7	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
8	WPW10170540		Stud   (Replaces: 2219698)			Immediately	$ 8.51
9	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 7.88
9	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
10	WPW10243392		Nameplate (black)   (Replaces: W10046640)				$ 70.19
10	W10046610		Nameplate (gray)				$ 33.40
10	W10046700		Nameplate (biscuit)		Appelez-nous	-
10	WPW10243393		Nameplate (white)   (Replaces: W10046670)				$ 66.65
11	WP488163		Screw   (Replaces: 488208)				$ 7.54
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	2159124		Gasket		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 10.87
15	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
15	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
16	2205821K		Door Bin (4)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
18	2308050		Thimble-top (for Stainless Steel And Monochromatic Satina Models)		Appelez-nous	-
18	WP2182181		Thimble, Top (for White, Biscuit, And Black Models)   (Replaces: 2308091)				$ 7.76
