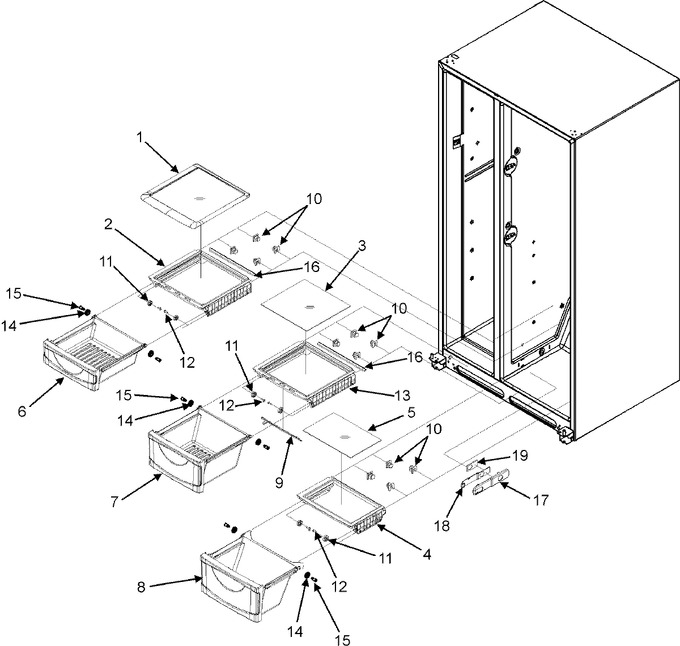

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004130		Shelf, Crisper Top	50	Appelez-nous	-
2	67004140		Frame, Crisper Shelf	50	Appelez-nous	-
3	67004246		Glass, Crisper Shelf	50	Appelez-nous	-
4	67004247		Frame, Meat Shelf	50	Appelez-nous	-
5	67004132		Glass, Meat Shelf	50	Appelez-nous	-
6	67005753		Pan, Sm Crisper	50	Appelez-nous	-
7	67005754		Pan, Lg Crisper	50	Appelez-nous	-
8	67005752		Pan, Meat	50	Appelez-nous	-
9	67004885		Slide, Control (wht)	50	Appelez-nous	-
10	WP12603701		Support, Crisper Frame   (Replaces: 12603701)	50			$ 10.83
11	67004169		Roller, Crisper	50			$ 5.81
12	67006692		Screw	50			$ 10.79
13	WP67004531		Frame, Lg Crisper Shelf   (Replaces: 67004352)	50			$ 220.14
14	67004133		Roller, Pan	50	Appelez-nous	-
15	67004174		Pin, Roller	50			$ 6.11
16	67004249		Seal, Crisper Frame (rear)	50	Appelez-nous	-
17	67004175		Housing, Temp. Control	50	Appelez-nous	-
18	67004176		Slide, Temp. Control	50	Appelez-nous	-
19	67004177		Gasket, Temp. Control	50	Appelez-nous	-
