SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor/cond Motor/rear Rollers


03 - Controls


04 - Crisper Assembly


05 - Evap Fan/crisp Light/water Filter


06 - Evaporator/front Rollers/water Tank


07 - Fountain


08 - Freezer Compartment


09 - Freezer Door


10 - Freezer Shelves


11 - Handles (msd2656keu)


12 - Hinges & Toe Grille


13 - Ice Bucket Assy.


14 - Ice Maker


15 - Refrigerator Door


16 - Refrigerator Shelves


17 - Supplemental Information


18 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

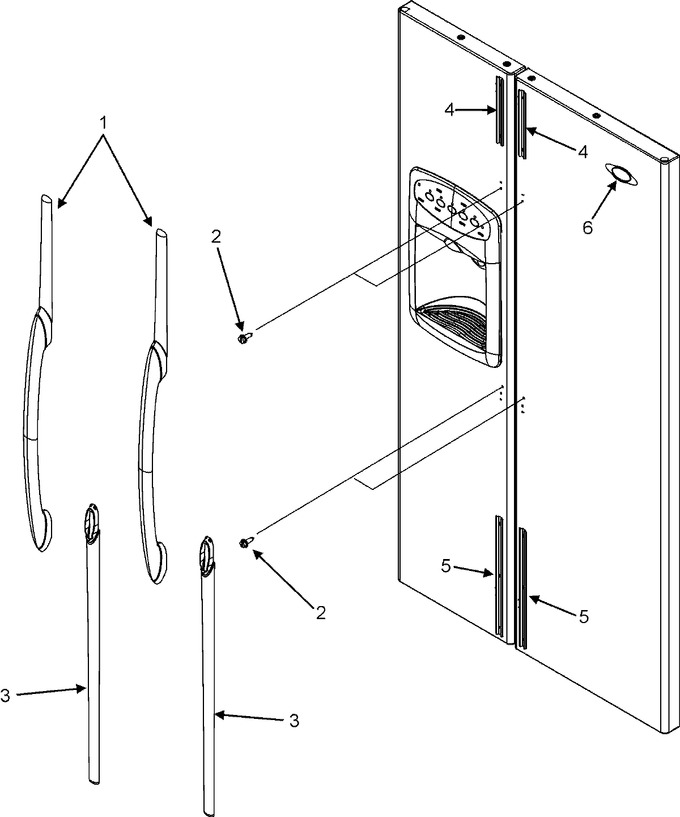

1	67007016		Handle Assy., Door (blk)	50	Appelez-nous	-
2	WP12992902		Screw   (Replaces: 67006282)	50			$ 11.91
3	67004235		Trim, Bottom Door (blk)	50	Appelez-nous	-
4	67004116		Cleat, Handle	50			$ 6.39
4	67003801		Screw, Sm No.8	50	Appelez-nous	-
5	67004117		Cleat, Handle	50			$ 6.47
5	67003801		Screw, Sm No.8	50	Appelez-nous	-
6	2324038		Nameplate   (Replaces: 67006439)	50			$ 71.59
