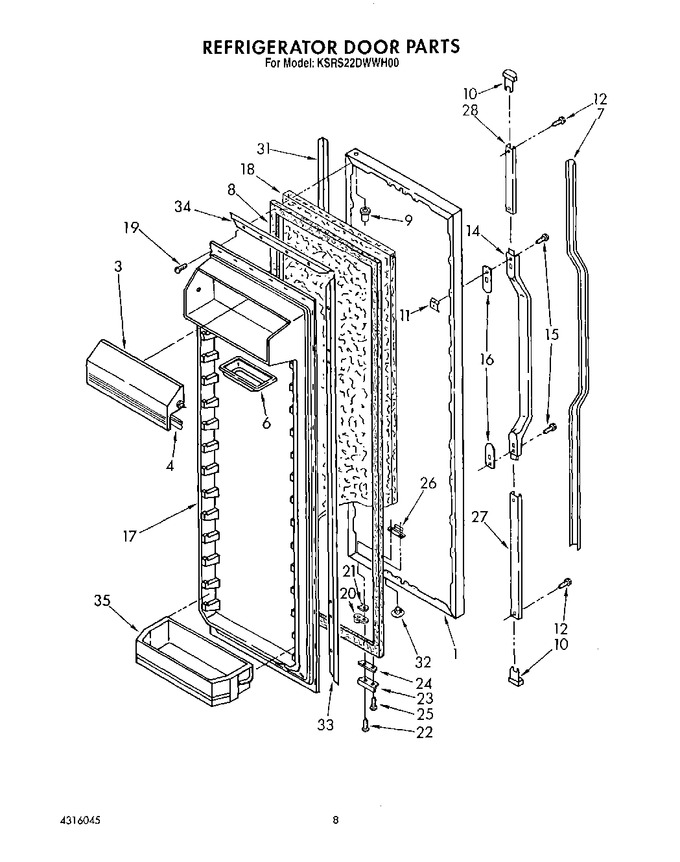

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1125943		Refrigerator Door (white)		Appelez-nous	-
1	1125950		Refrigerator Door (almond (also Order Item 18))		Appelez-nous	-
3	1125733		Door, Compartment		Appelez-nous	-
4	1125695		Gasket, Utility Door		Appelez-nous	-
6	1125936		Butter, Tray		Appelez-nous	-
7	1125720		Insert, Handle (white)		Appelez-nous	-
7	1125721		Insert, Handle (almond)		Appelez-nous	-
8	2188404A		Door Gasket, Magnetic   (Replaces: 1125927)				$ 269.26
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	1107341		End Cap, Handle		Appelez-nous	-
11	941242		Screw Anchor (2)		Appelez-nous	-
12	489075		Screw (2)		Appelez-nous	-
14	1107215		Handle Assembly		Appelez-nous	-
15	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 487909)			Immediately	$ 7.79
16	1107651		Spacer, Handle		Appelez-nous	-
17	1125648		Panel, Interior Door		Appelez-nous	-
18	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
19	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
19	WP489069		Screw, 7 X 1/2 (30)   (Replaces: 489101)			Immediately	$ 7.86
20	4318165		Door Closer, Upper Cam   (Replaces: 986758)			Immediately	$ 27.36
21	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
22	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
23	988420		Bracket, Door Stop		Appelez-nous	-
24	988421		Shim		Appelez-nous	-
25	488549		Screw, 8 X 1/2		Appelez-nous	-
26	988402		Tap Plate		Appelez-nous	-
27	1107617		Retainer, Insert (bottom)		Appelez-nous	-
28	1107241		Retainer, Insert		Appelez-nous	-
31	1119061		Trim, Door		Appelez-nous	-
32	534927		Hole Plug (2)		Appelez-nous	-
33	1117766		Gasket Retainer, Side (2)				$ 36.55
34	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
35	4318416		Black Grille Kit		Appelez-nous	-
35	1125555		Shelf Bin (4)		Appelez-nous	-
35	4318331		Trim Kit		Appelez-nous	-
35	4211136		Trim Kit Panel (white)		Appelez-nous	-
35	4211135		Almond Trim Kit Panel		Appelez-nous	-
35	4318334		Handle Insert (black)		Appelez-nous	-
35	4318335		Woodgrain Handle Insert		Appelez-nous	-
