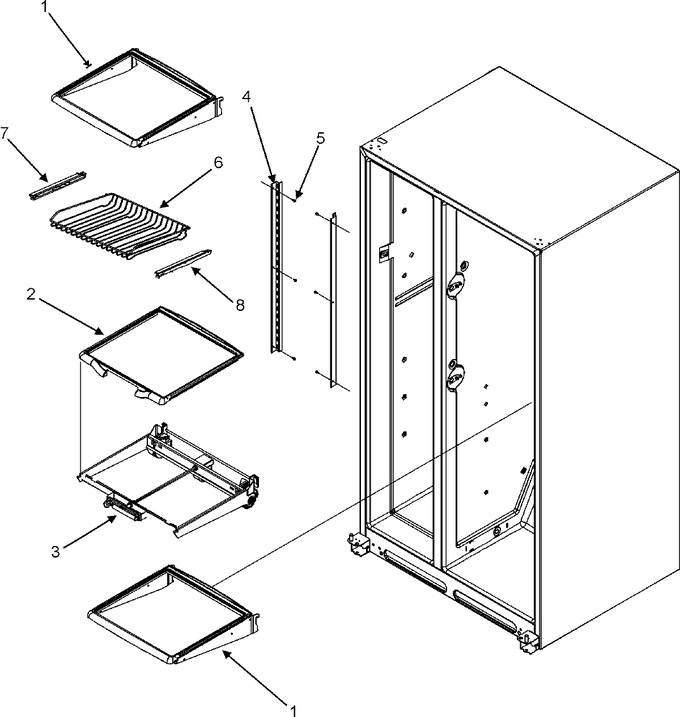

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004242		Shelf, Glide	50	Appelez-nous	-
2	67004243		Shelf, Elevator	50	Appelez-nous	-
3	67004604		Frame Assy., Elevator Shelf	50	Appelez-nous	-
4	67004245		Ladder, Side	50	Appelez-nous	-
5	WP90767		Screw, Sm   (Replaces: M0211016)	50		Immediately	$ 7.82
6	12565901		Rack, Can	50	Appelez-nous	-
7	12579601		Glide, Can Rack (rt)	50	Appelez-nous	-
7	W11233072		Screw   (Replaces: M0214931)	50		Immediately	$ 14.02
8	12579602		Glide, Can Rack (lt)	50	Appelez-nous	-
8	W11233072		Screw   (Replaces: M0214931)	50		Immediately	$ 14.02

    View Diagram in Separate Window       Print Part List
