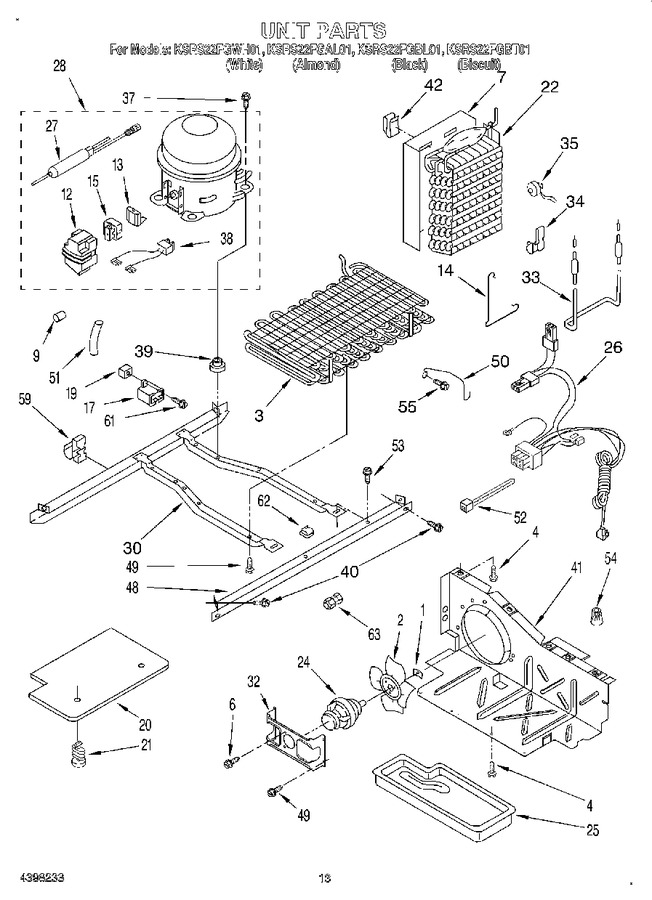

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	1108179		Fan, Blade				$ 49.54
3	2198175		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
6	681390		Screw   (Replaces: 489099)				$ 13.06
7	2149293		Heat Shield And Drain Pan		Appelez-nous	-
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.73
12	WP2162358		Cover   (Replaces: 2162358)				$ 90.75
13	4387535		Overload (service Includes Relay)   (Replaces: 4387767)				$ 181.95
13	WP61006294		Overload (production)   (Replaces: 2162218)				$ 115.41
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	2183454		Relay (production) (service, See Overload)		Appelez-nous	-
17	2169137		Capacitor (production)		Appelez-nous	-
17	WP4387764		Capacitor (service)   (Replaces: 4387764)				$ 177.04
19	509812		Screw Grommet		Appelez-nous	-
20	2182057		Unit Cover, Bottom				$ 72.28
21	489396		Clip				$ 10.72
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 339.85
24	W10822259		Motor, Fan   (Replaces: 2176336)			Immediately	$ 221.30
25	2154114		Tray, Evaporator		Appelez-nous	-
26	2186831		Harness, Intermediate		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2164409)			Immediately	$ 52.57
28	876765		Tube Kit			Immediately	$ 86.33
28	W10309990		Compressor (includes Items 12, 13, 15, 17, 27 & 38) (also Order)   (Replaces: 2183453)			Immediately	$ 632.81
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 233.03
32	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
33	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 117.38
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 50.77
37	489387		Screw		Appelez-nous	-
38	WP2172890		Wire Assembly   (Replaces: 2172890)				$ 8.10
39	W11661108		Grommet (4)   (Replaces: 2183042)				$ 14.49
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
42	2155547		Clip, Heat		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	2186496		Guard, Fan		Appelez-nous	-
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
52	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.90
53	WP489427		Screw   (Replaces: 489427)				$ 7.47
54	850145		Wire Connector		Appelez-nous	-
55	WP489478		Screw   (Replaces: 489478)				$ 7.75
59	2155658		Clip, Wire & Tube		Appelez-nous	-
61	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
62	2200079		Clip, Tube		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 91.35
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 130.71
63	WP4318044		Union   (Replaces: 2196152)				$ 10.35
63	978026		Valve, Access (5/16``)			Immediately	$ 128.09
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
63	978028		Valve, Access (1/2)		Appelez-nous	-
