SELECT A DIAGRAM

01 - Cover


03 - Control Panel

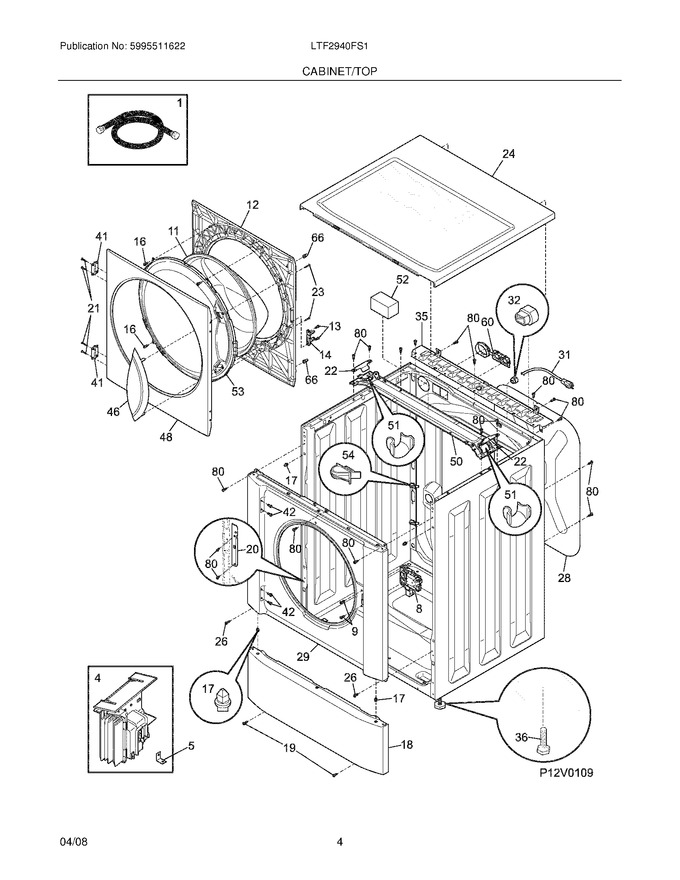

05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131454100		Hose,water Inlet ,4 Ft. ,hose & Washer		Appelez-nous	-
5	134522900		Bracket,angle ,motor Control				$ 14.46
9	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
11	134366400		Panel,door Glass				$ 348.79
12	134507300		Panel,inner Door ,with Bumper				$ 135.66
13	131302901		Screw,10-16 X 0.750				$ 5.51
14	131763302		Striker,door/lock/sw   (Replaces: 131763310)			Immediately	$ 38.98
16	131205300		Screw,10-16 X 0.750			Immediately	$ 13.44
17	134408700		Clip,assembly				$ 8.35
18	134321702		Panel,front Service ,white				$ 154.81
19	131302800		Screw,10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 29.53
20	134434901		Bracket,ls Panel ,reinforcement				$ 43.73
21	137361500		Screw,comb Flat Head ,8-18ab X 0.75   (Replaces: 134424700)				$ 8.66
22	134364700		Retainer,spring Steel		Appelez-nous	-
23	134522100		Screw,no.12 Flat Head ,10-14p ,quad Drive				$ 18.90
24	134365000		Panel,work Top ,white		Appelez-nous	-
26	134521600		Screw,hex Washer Head ,m5 0.8 X 15				$ 2.63
28	134364300		Panel,service Access ,rear				$ 54.39
29	134363300		Panel,cabinet Front ,white		Appelez-nous	-
32	5303209428		Bushing,power Cord				$ 18.90
35	134365100		Bracket,top Support ,rear				$ 150.99
36	134548800		Leveling Leg,screw ,plastic			Immediately	$ 33.55
41	134412400		Hinge,door				$ 55.13
42	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 16.54
46	134472202		Handle,door				$ 256.04
48	134412103		Panel,outer Door ,white		Appelez-nous	-
50	134364600		Bracket,tub Suspension				$ 60.64
51	134562100		Protector,tub Brkt ,spring Hook ,(2)				$ 9.56
52	131931202		Dampener,vibration ,foam				$ 19.28
53	134507403		Adapter,door Glass Ring				$ 412.97
54	134364900		Fastener,wire Harn Clip		Appelez-nous	-
60	134372000		Grommet,dispenser ,back Panel				$ 33.86
66	134366500		Bumper,door				$ 13.18
80	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 15.75
F31	5304505407		Power Cord,electric Svce   (Replaces: 134501000)				$ 98.00
F4	134743500		Control Board,motor   (Replaces: 134409904)			Immediately	$ 263.19
F8	131763256		Door Lock/switch Assy   (Replaces: 131763245)			Immediately	$ 163.07
FNI	134606800		Wiring Harness,door Switch				$ 113.69
FNI	134547600		Wiring Harness,motor Control				$ 70.09
NI	134889700		Clip, Hose,drain ,rear-panel				$ 18.38
NI	134178901		Screw,8-18ab X 0.455				$ 16.54
NI	134591500		Plug Assy,shipping Holes ,back				$ 51.98
NI	134596200		Shipping Support Kit				$ 177.98
NI	134434900		Bracket,rs Panel ,reinforcement		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
