01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

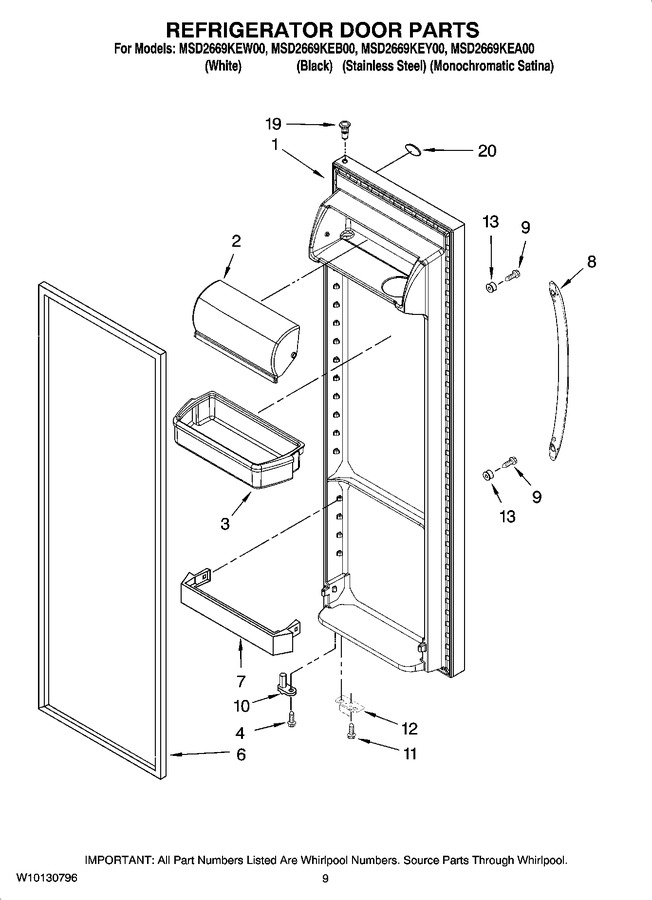

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254938W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2254938B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	W10130784		Refrigerator Door (includes Item 6) (stainless Steel)		Appelez-nous	-
1	W10130783		Refrigerator Door (includes Item 6) (mono Satina)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 89.42
3	WPW10321304		Shelf Bin (3)   (Replaces: 2304235K)			Immediately	$ 44.73
4	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
7	WP2156022		Shelf Bin   (Replaces: 2156022)			Immediately	$ 72.80
8	67006115B		Handle (black)		Appelez-nous	-
8	67006114W		Handle (white)		Appelez-nous	-
8	67006391S		Handle (stainless)		Appelez-nous	-
9	WP488163		Screw   (Replaces: 488208)				$ 7.92
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2200082B		Bracket, Door Stop (black)				$ 42.44
12	2200082		Bracket, Door Stop (zinc)				$ 5.83
13	WPW10170540		Stud, Handle   (Replaces: 2326259)			Immediately	$ 8.51
19	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
20	2324038		Nameplate   (Replaces: 13035001)				$ 71.59
