01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

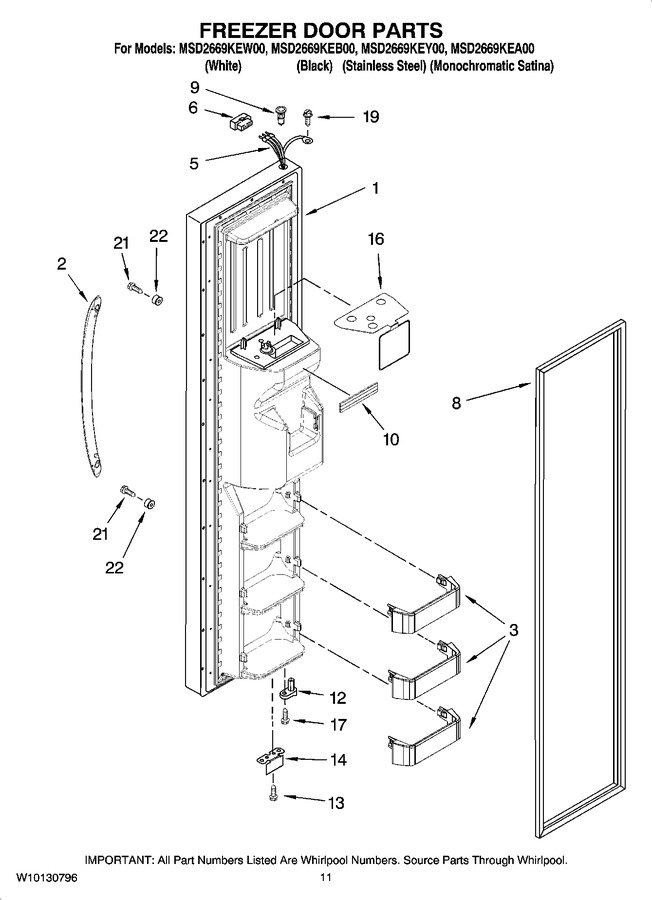

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10120284		Freezer Door (includes 8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
1	W10120281		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10120282		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10120280		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	67006114W		Handle (white)		Appelez-nous	-
2	67006115B		Handle (black)		Appelez-nous	-
2	67006391S		Handle (stainless)		Appelez-nous	-
3	WP2171157		Trivet, Fc   (Replaces: 2171157K)				$ 63.70
5	W10683539		Dispenser Harness   (Replaces: 2187725)				$ 38.36
6	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
9	WP2182181		Thimble-top   (Replaces: 2200086)				$ 8.15
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2200082		Bracket, Door Stop (zinc)				$ 5.83
14	2200082B		Bracket, Door Stop (black)				$ 42.44
16	2304895		Safety Barrier		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
19	WP489128		Screw   (Replaces: 488500)				$ 11.40
21	WP488163		Screw   (Replaces: 488208)				$ 7.92
22	WPW10170540		Stud, Handle   (Replaces: 2326259)			Immediately	$ 8.51
