Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

3 WP2194719 Retainer, Levers   (Replaces: 2194719) In-Stock Immediately $ 11.77

4 WPW10224328 Spring, Torsion   (Replaces: 2304772) Special Order $ 83.24

5 WP2196195 Pin   (Replaces: 2196195) Special Order $ 14.58

6 WP2180353 Door, Ice   (Replaces: 2180353) In-Stock Immediately $ 24.69

7 2304355 Door Mechanism Assembly Appelez-nous -
8 2205686 Mechanism Delay Appelez-nous -
9 WP2207007B Grille, Overflow (black)   (Replaces: 2207007B) Special Order $ 70.51

9 2207007W Grille, Overflow (white) Special Order $ 29.56

10 8201537 Water Fitting Assembly (includes Water Tube)   (Replaces: 2304317) Special Order $ 134.13

11 WP2203562W Lever, Ice Dispenser (white)   (Replaces: 2203562W) Special Order $ 107.66

11 2203562AP Lever, Ice Dispenser (apollo Grey) Special Order $ 42.25

11 2203562B Lever, Ice Dispenser (black) Special Order $ 85.92

12 WP2180224 Guide, Ice   (Replaces: 2180224) In-Stock Immediately $ 27.63

15 2323002 Bracket, Control Appelez-nous -
17 2203561W Lever, Water Dispenser (white) Special Order $ 95.98

17 2203561AP Lever, Water Dispenser (apollo Grey) Appelez-nous -
17 2203561B Lever, Water Dispenser (black) Special Order $ 102.50

19 2202547 Cover- Con Appelez-nous -
22 WP3400906 Screw   (Replaces: 489000) Special Order $ 7.84

23 W10121900 Front Cover Assembly (includes Items 19, 20 & 21) (universal Silver) Appelez-nous -
23 W10120292 Front Cover Assembly (includes Items 19, 20 & 21) (white) Appelez-nous -
23 W10120293 Front Cover Assembly (includes Items 19, 20 & 21) (black) Appelez-nous -
24 2252127 Sleeve, Delay Mechanism Special Order $ 22.00

25 WP2195051 Strain Relief   (Replaces: 2195051) Special Order $ 11.67

26 WP2304673 Bracket, Dispenser   (Replaces: 2304673) Special Order $ 15.60


    View Diagram in Separate Window     Print Icon   Print Part List

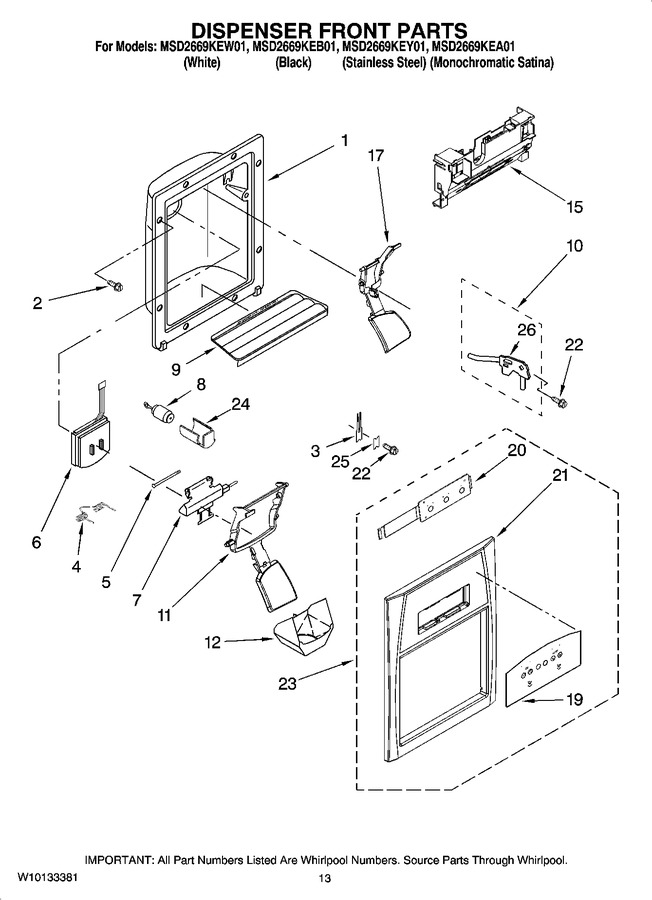

Diagram for MSD2669KEB01
