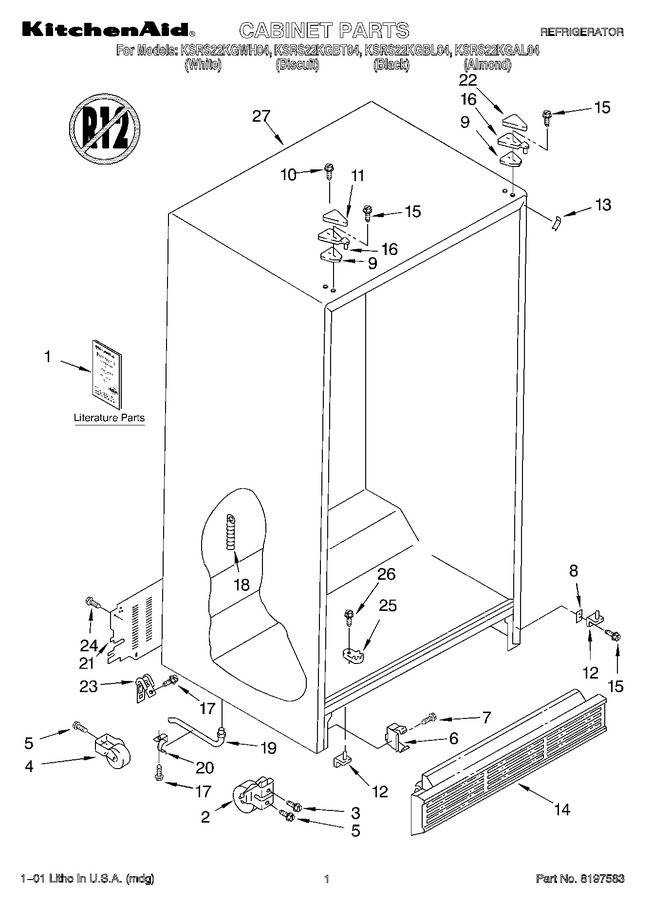

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2206106 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT2186638 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 1 | LIT2211863 | Literature Parts (energy Guide) |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WP2155013 | Clip, Grille (2) (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 8 | 2209697 | Shim |
|
$ 41.25 | |||||
| 9 | 2196048 | Shim, Hinge Top |
|
- | |||||
| 10 | 489284 | Screw |
|
- | |||||
| 11 | 2150343 | Hinge Cover (almond) |
|
- | |||||
| 11 | 2171947 | Hinge Cover (black) |
|
- | |||||
| 11 | 2186858 | Hinge Cover (biscuit) |
|
- | |||||
| 11 | 1129262 | Hinge Cover (white) |
|
$ 15.75 | |||||
| 12 | 8201707 | Hinge Bottom (2) (Replaces: 2217075) |
|
$ 97.45 | |||||
| 13 | 2196095 | Filler, Wrapper (almond) |
|
- | |||||
| 13 | 2196150 | Filler, Wrapper (biscuit) |
|
- | |||||
| 13 | 2196094 | Filler, Wrapper (white) |
|
- | |||||
| 13 | 2196097 | Filler, Wrapper (black) |
|
- | |||||
| 14 | W11167901 | Grille (white) (Replaces: 2198469W) |
|
$ 116.76 | |||||
| 14 | 2198469N | Grille (almond) |
|
- | |||||
| 14 | 2198469B | Grille (black) |
|
- | |||||
| 14 | 2198469T | Grille (biscuit) |
|
$ 76.00 | |||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 16 | WP2196046 | Hinge, Top (2) (Replaces: 2196046) |
|
$ 104.44 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 18 | W11566763 | Fitting, Drain (Replaces: 940139) |
|
Immediately | $ 53.45 | ||||
| 19 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 32.90 | ||||
| 20 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 11.28 | |||||
| 21 | WP2188756 | Cover, Unit (Replaces: 2171936) |
|
$ 148.75 | |||||
| 22 | 1119787 | Hinge Cover (white) |
|
$ 22.50 | |||||
| 22 | 2186857 | Hinge Cover (biscuit) |
|
- | |||||
| 22 | 2155938 | Hinge Cover (black) |
|
$ 15.55 | |||||
| 22 | 1119789 | Hinge Cover (almond) |
|
- | |||||
| 23 | 549193 | Clamp-service Cord |
|
$ 14.06 | |||||
| 24 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 25 | WPW10329686 | Door Closer, Lower Cam (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 26 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 | |||||
| 27 | N/A | Cabinet (not A Serviceable Part) |
|
- |
