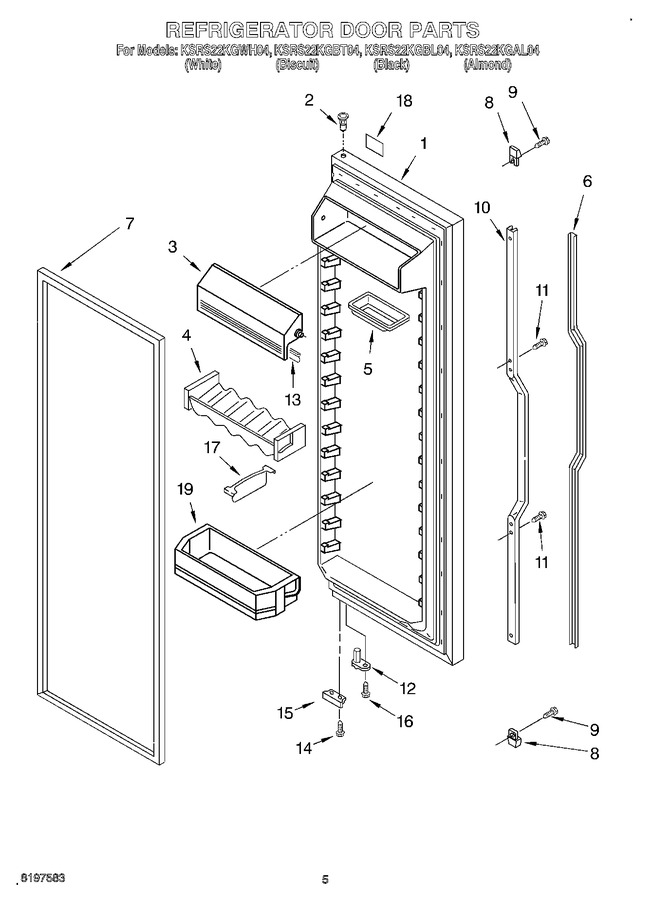

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194200W		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2194200T		Refrigerator Door (includes No.7) (biscuit)		Appelez-nous	-
1	2198267		Refrigerator Door (includes No.7) (black)		Appelez-nous	-
1	2194200N		Refrigerator Door (includes No.7) (almond)		Appelez-nous	-
2	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 7.76
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Tray, Butter		Appelez-nous	-
6	2173831		Insert, Handle (almond)		Appelez-nous	-
6	2173832		Insert, Handle (black)		Appelez-nous	-
6	2200434		Insert, Handle (biscuit)		Appelez-nous	-
6	2173830		Insert, Handle (white)		Appelez-nous	-
7	2159081		Door Gasket, Magnetic (black)				$ 319.60
7	2159073		Door Gasket, Magnetic (mist Beige)				$ 317.32
8	2194778N		End Cap, Handle (almond)		Appelez-nous	-
8	2194778T		End Cap, Handle (biscuit)		Appelez-nous	-
8	2194778W		End Cap, Handle (white)		Appelez-nous	-
8	2194778B		End Cap, Handle (black)		Appelez-nous	-
9	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
10	2194776T		Retainer, Handle (biscuit)		Appelez-nous	-
10	2194776N		Retainer, Handle (almond)		Appelez-nous	-
10	2194776B		Retainer, Handle (black)		Appelez-nous	-
10	2194776W		Retainer, Handle (white)		Appelez-nous	-
11	WP489463		Screw   (Replaces: 489463)				$ 7.82
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	2159124		Gasket, Door Compartment		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 10.87
15	2195952		Bracket, Door Stop (black)		Appelez-nous	-
15	2195950		Bracket, Door Stop (chrome)				$ 5.84
16	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
17	2195497		Load Lock		Appelez-nous	-
18	2200935		Nameplate (biscuit)		Appelez-nous	-
18	2188150		Nameplate (almond)		Appelez-nous	-
18	2188151		Nameplate (black)		Appelez-nous	-
18	2188149		Nameplate (white)		Appelez-nous	-
19	2171063		Shelf Bin (4)		Appelez-nous	-
