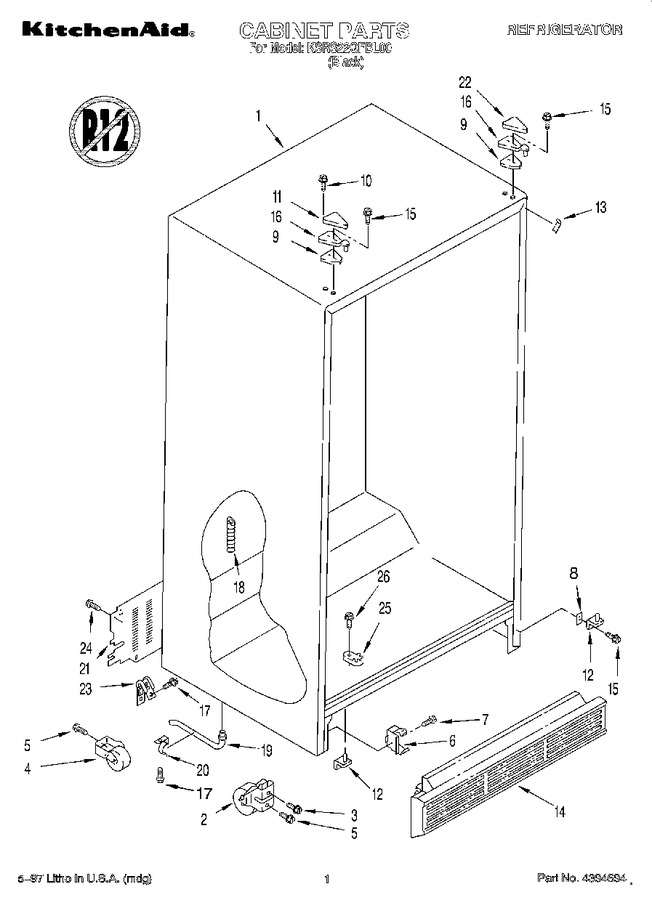

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 489456) |
|
$ 11.88 | |||||
| 4 | WPW10250570 | Roller, Rear (2) (Replaces: 981122) |
|
$ 40.17 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 6 | WP2155013 | Clip, Grille (2) (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 8 | WP2181911 | Shim (Replaces: 2181911) |
|
$ 33.21 | |||||
| 9 | 2196048 | Shim, Hinge Top |
|
- | |||||
| 10 | 489284 | Screw |
|
- | |||||
| 11 | 2151694 | Hinge Cover |
|
- | |||||
| 12 | 8201707 | Hinge Bottom (2) (Replaces: 2171851) |
|
$ 88.90 | |||||
| 13 | 1127272 | Filler, Wrapper |
|
- | |||||
| 14 | 2155476 | Grille |
|
$ 62.20 | |||||
| 15 | WP999367 | Screw (Replaces: 489367) |
|
$ 7.86 | |||||
| 16 | WP2196046 | Hinge, Top (2) (Replaces: 2196046) |
|
$ 104.44 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 18 | W11566763 | Fitting, Drain (Replaces: 940139) |
|
Immediately | $ 50.90 | ||||
| 19 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 31.33 | ||||
| 20 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 10.74 | |||||
| 21 | WP2188756 | Cover, Unit (Replaces: 2171938) |
|
$ 141.67 | |||||
| 22 | 2155938 | Hinge Cover |
|
$ 15.55 | |||||
| 23 | 549193 | Clamp-service Cord |
|
$ 13.39 | |||||
| 24 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 25 | WPW10329686 | Door Closer, Lower Cam (Replaces: 2155311) |
|
Immediately | $ 5.43 | ||||
| 26 | WP489483 | Screw (Replaces: 489483) |
|
$ 10.87 |
