SELECT A DIAGRAM

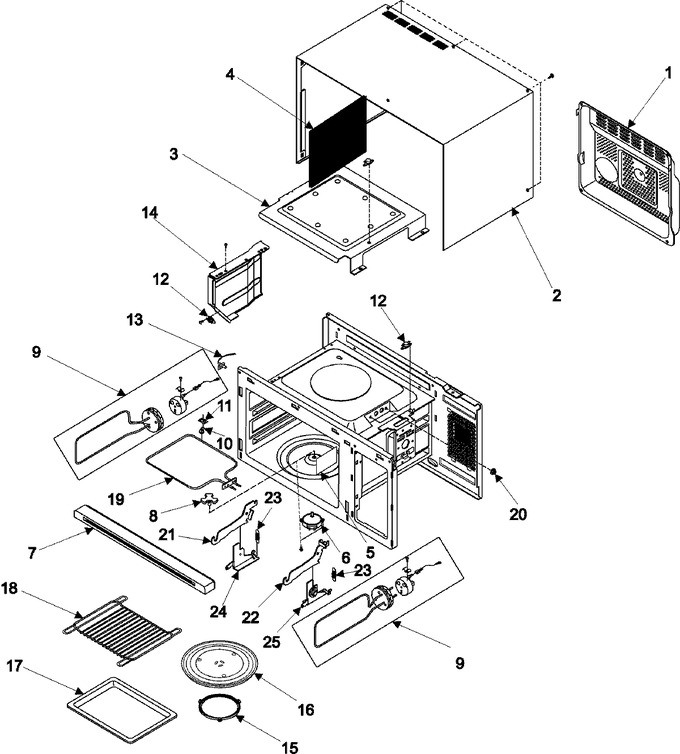

01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE63-00131A | Cover-back |
|
- | |||||
| 2 | DE64-00483H | Panel-outer |
|
- | |||||
| 3 | DE61-00290A | Bracket-upper |
|
- | |||||
| 4 | DE63-90064B | Cushion |
|
- | |||||
| 5 | DE63-00102A | Cover-ceiling |
|
$ 3.59 | |||||
| 6 | DE31-10104A | Motor-synchronous |
|
- | |||||
| 7 | DE64-00537D | Grille |
|
- | |||||
| 8 | DE67-00015A | Coupler |
|
- | |||||
| 9 | DE47-00026A | Heater |
|
- | |||||
| 9 | DE47-00027A | Heater |
|
- | |||||
| 10 | DE61-70060A | Spring-plate |
|
- | |||||
| 11 | DE61-00324A | Support-heater |
|
- | |||||
| 12 | DE47-20009A | Thermostat |
|
$ 19.53 | |||||
| 13 | DE32-10013A | Sensor-thermistor |
|
$ 59.66 | |||||
| 14 | DE97-00314A | Assy-guide Air |
|
- | |||||
| 15 | DE92-90189S | Assy-guide Roller |
|
$ 48.75 | |||||
| 16 | DE74-20015G | Tray, Cooking |
|
$ 95.97 | |||||
| 17 | DE97-00327A | Assy-tray Baking |
|
- | |||||
| 18 | DE75-00028A | Rack-wire |
|
- | |||||
| 19 | DE47-00025A | Heater |
|
- | |||||
| 20 | DE60-30016A | Nut-flange |
|
Immediately | $ 19.53 | ||||
| 21 | DE66-00102A | Arm-slider(l) |
|
- | |||||
| 22 | DE66-00103A | Arm-silder(r) |
|
$ 23.00 | |||||
| 23 | DE61-00314A | Spring Etc-arm |
|
$ 6.46 | |||||
| 24 | DE61-00284A | Bracket-holder Slider(l) |
|
$ 18.59 | |||||
| 25 | DE61-00285A | Bracket-holder Slider(r) |
|
$ 30.38 |
