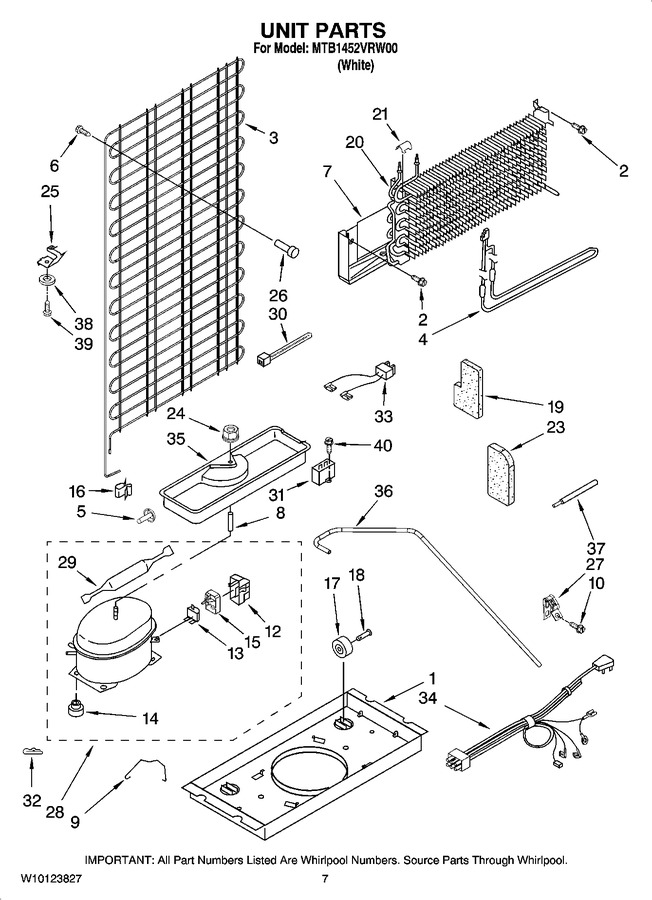

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2221886		Support Plate, Compressor		Appelez-nous	-
2	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
3	WP2252730		Condenser   (Replaces: 2252730)				$ 287.29
4	WP2263749		Heater, Defrost   (Replaces: 2263749)			Immediately	$ 93.70
5	2264516		Snap Rivet		Appelez-nous	-
6	8533892		Screw		Appelez-nous	-
7	2319224		Heat Shield				$ 116.21
8	2176844		Spacer		Appelez-nous	-
9	2263622		Clip		Appelez-nous	-
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
12	WP2162358		Cover (service)   (Replaces: 4387731)				$ 95.29
12	WP2162358		Cover (production)   (Replaces: 2162358)				$ 95.29
13	WP4387938		Overload (service (includes Relay)   (Replaces: 4387938)				$ 198.58
13	4387535		Overload (production)   (Replaces: 2154760)				$ 191.05
14	WP4387558		Grommet (service)   (Replaces: 4387558)				$ 7.30
14	WP2163786		Grommet (production)   (Replaces: 2222084)				$ 8.36
15	2262186		Start Relay				$ 139.62
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
18	WP2264756		Axle, Rivet   (Replaces: 2264756)				$ 7.55
19	2262191		Wedge-evaporator		Appelez-nous	-
20	WP2263919		Evaporator Assy.   (Replaces: 2263919)				$ 324.61
21	9791833		Clip, Evaporator Tube		Appelez-nous	-
23	2262192		Wedge, Evaporator		Appelez-nous	-
24	285002		Hex Nut   (Replaces: 489153)				$ 12.85
25	4386951		Clip, Condenser Mounting   (Replaces: 2172892)		Appelez-nous	-
26	2258452		Bracket, Condenser		Appelez-nous	-
27	549193		Clamp				$ 14.06
28	W10823815		Compressor (includes Items 12,13,14 & 29)   (Replaces: 2256541)				$ 707.86
29	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
30	WPW10339879		Strap   (Replaces: 2263990)				$ 8.30
31	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
32	24364001		Clip, Compressor		Appelez-nous	-
33	WP2172890		Wire Assembly   (Replaces: 2172890)				$ 8.51
34	2258530		Wire Assy. Unit		Appelez-nous	-
35	2176668		Evaporator Tray				$ 77.40
36	2264563		Tube, Discharge		Appelez-nous	-
37	2320728		Tube, Process		Appelez-nous	-
38	8526417		Washer   (Replaces: VS611)				$ 14.64
39	2256637		Screw				$ 13.53
40	876764		Valve, Access(3/16``)			Immediately	$ 95.92
40	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
40	978028		Valve, Access (1/2``)		Appelez-nous	-
40	978029		Valve, Access (5/8``)				$ 93.85
40	978030		Valve, Access (3/4``)				$ 137.25
40	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
40	8533919		Screw		Appelez-nous	-
40	12658531CQ		Door, Refrigerator (bisque)   (Replaces: 67004505)		Appelez-nous	-
40	978026		Valve, Access (5/16``)			Immediately	$ 134.49

    View Diagram in Separate Window       Print Part List
