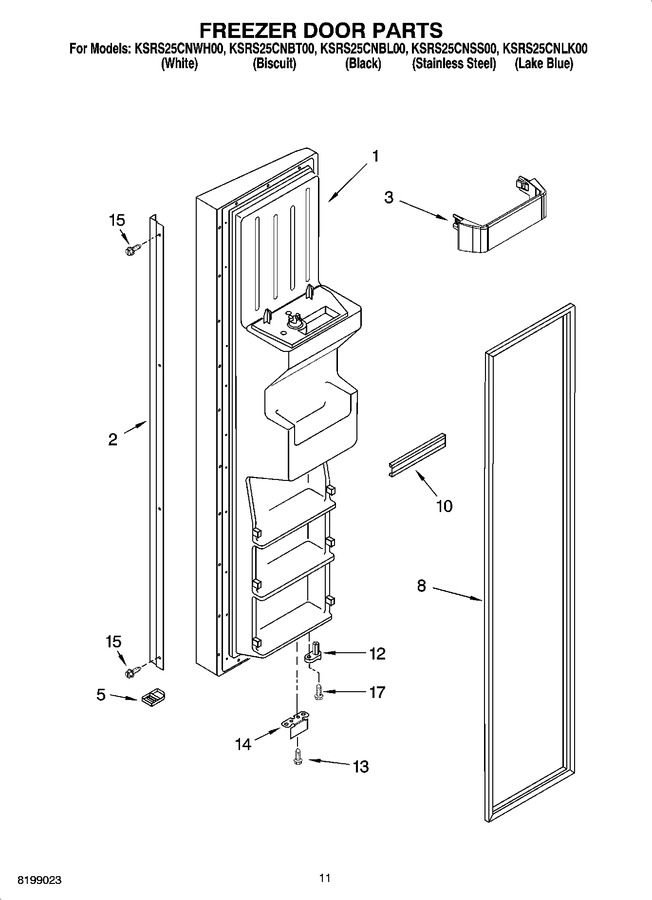

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2301201T | Freezer Door (includes 8 And Dispenser Front Parts) (biscuit) |
|
- | |||||
| 1 | 2301201B | Freezer Door (includes 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | 2301201SB | Freezer Door (includes 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 1 | 2301201LK | Freezer Door (includes 8 And Dispenser Front Parts) (lake Blue) |
|
- | |||||
| 1 | 2301201W | Freezer Door (includes 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 2 | 2220238ES | Handle (european Silver) |
|
- | |||||
| 2 | 2220238W | Handle (white) |
|
- | |||||
| 2 | 2220238T | Handle (biscuit) |
|
- | |||||
| 2 | 2220238B | Handle (black) |
|
- | |||||
| 2 | 2220238S | Handle (stainless) |
|
- | |||||
| 3 | 2223559 | Trivet (4) |
|
$ 28.77 | |||||
| 5 | 2207110W | Endcap, Bottom (white) |
|
- | |||||
| 5 | 2207110T | Endcap, Bottom (biscuit) |
|
- | |||||
| 5 | 2207110B | Endcap, Bottom (black) |
|
- | |||||
| 5 | 2207110ES | Endcap, Bottom (european Silver) |
|
- | |||||
| 8 | 2159074 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221303) |
|
$ 325.70 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2221314) |
|
$ 332.49 | |||||
| 10 | WPW10307490 | Trim, Door Shelf (Replaces: 2219982) |
|
Immediately | $ 24.27 | ||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 14 | 2200082B | Bracket, Door Stop (black) |
|
$ 42.44 | |||||
| 14 | 2200082 | Bracket, Door Stop (chrome) |
|
$ 5.83 | |||||
| 15 | 3400899 | Screw (black) |
|
$ 7.74 | |||||
| 15 | 3400897 | Screw (chrome) |
|
- | |||||
| 15 | 8281135 | Screw (biscuit) |
|
- | |||||
| 15 | 3400898 | Screw (white) |
|
- | |||||
| 17 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 |
