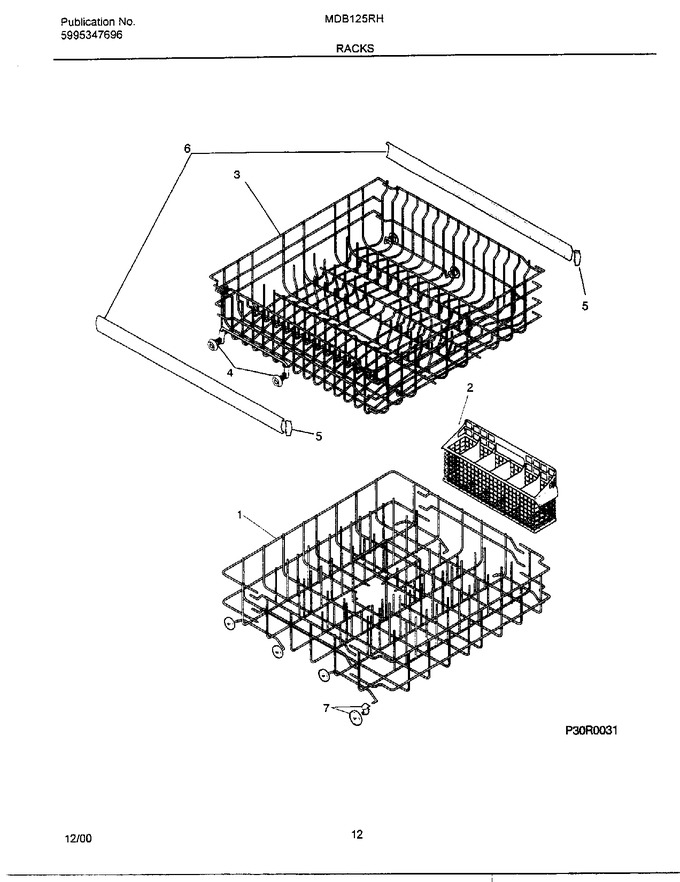

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154331604 | Rack Assy-lower |
|
$ 188.20 | |||||
| 2 | 5304509753 | Basket,silverware ,white (Replaces: 154210401) |
|
Immediately | $ 40.97 | ||||
| 3 | 5304535380 | Rack Assy-upper (Replaces: 154331502) |
|
Immediately | $ 167.45 | ||||
| 4 | 154522902 | Wheel & Bushing Assy,upper Rack (Replaces: 5304407064) |
|
$ 43.93 | |||||
| 5 | 5300809927 | Cap,slide ,(4) |
|
Immediately | $ 4.10 | ||||
| 6 | 154597801 | Slide,rack ,(2) (Replaces: 154232701) |
|
Immediately | $ 10.40 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,lower Rack (Replaces: 154174501) |
|
Immediately | $ 14.17 |
