SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts

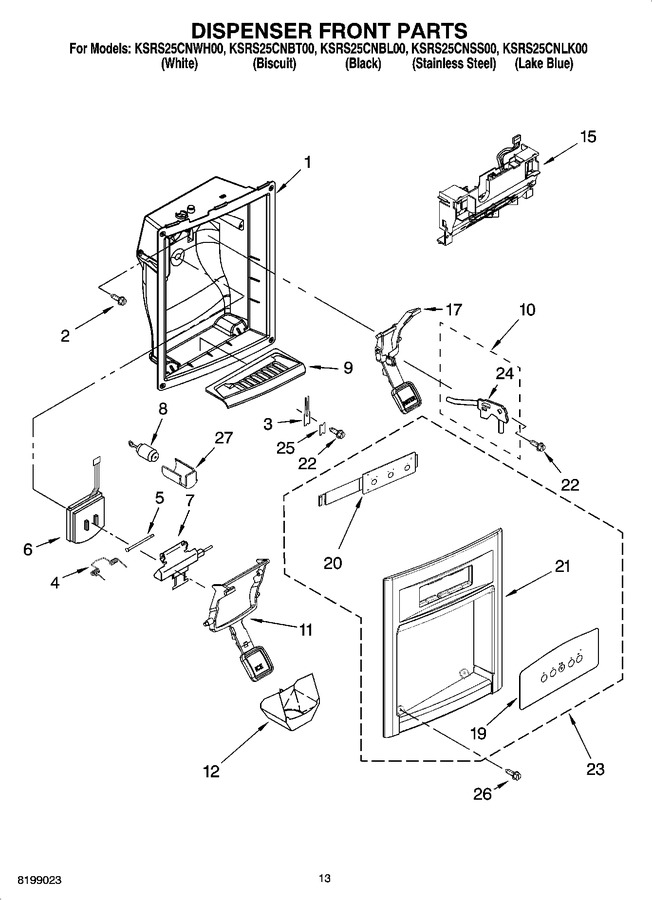

08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP3400906		Screw   (Replaces: 489000)				$ 7.84
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 11.77
4	WPW10224328		Spring, Torsion   (Replaces: 2256199)				$ 83.24
5	WP2196195		Pin   (Replaces: 2196195)				$ 14.58
6	WP2180353		Door, Ice   (Replaces: 2252076)			Immediately	$ 24.69
7	2206423		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	WP2207109B		Grille, Overflow (black)   (Replaces: 2207109B)				$ 69.02
9	2207109T		Grille, Overflow (biscuit)		Appelez-nous	-
9	2207109W		Grille, Overflow (white)		Appelez-nous	-
9	2301573ES		Grille, Overflow (european Silver)		Appelez-nous	-
10	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: 2209718)				$ 134.13
11	2259396SB		Lever, Ice Dispenser (black (black Pad))		Appelez-nous	-
11	2259396T		Lever, Ice Dispenser (biscuit (biscuit Pad))		Appelez-nous	-
11	2259396W		Lever, Ice Dispenser (white (cody Grey Pad))		Appelez-nous	-
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.63
15	2252163		Bracket, Control				$ 229.17
17	2259395SB		Lever, Water Dispenser (black (black Pad))		Appelez-nous	-
17	2259395T		Lever, Water Dispenser (biscuit (biscuit Pad))		Appelez-nous	-
17	2259395W		Lever, Water Dispenser (white (cody Grey Pad))		Appelez-nous	-
22	WP3400906		Screw   (Replaces: 489000)				$ 7.84
23	2252085B		Front Cover Assembly (includes Items 19, 20 & 21) (black)				$ 196.44
23	2252085ES		Front Cover Assembly (includes Items 19, 20 & 21) (european Silver)				$ 30.93
23	2252085W		Front Cover Assembly (includes Items 19, 20 & 21) (white)		Appelez-nous	-
23	2252085T		Front Cover Assembly (includes Items 19, 20 & 21) (biscuit)		Appelez-nous	-
24	WP2304673		Bracket, Dispenser   (Replaces: 2188355)				$ 15.60
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.67
26	WP3400065		Screw (2)   (Replaces: 3400065)			Immediately	$ 7.74
27	2252127		Sleeve, Mechanism				$ 22.00

    View Diagram in Separate Window       Print Part List
