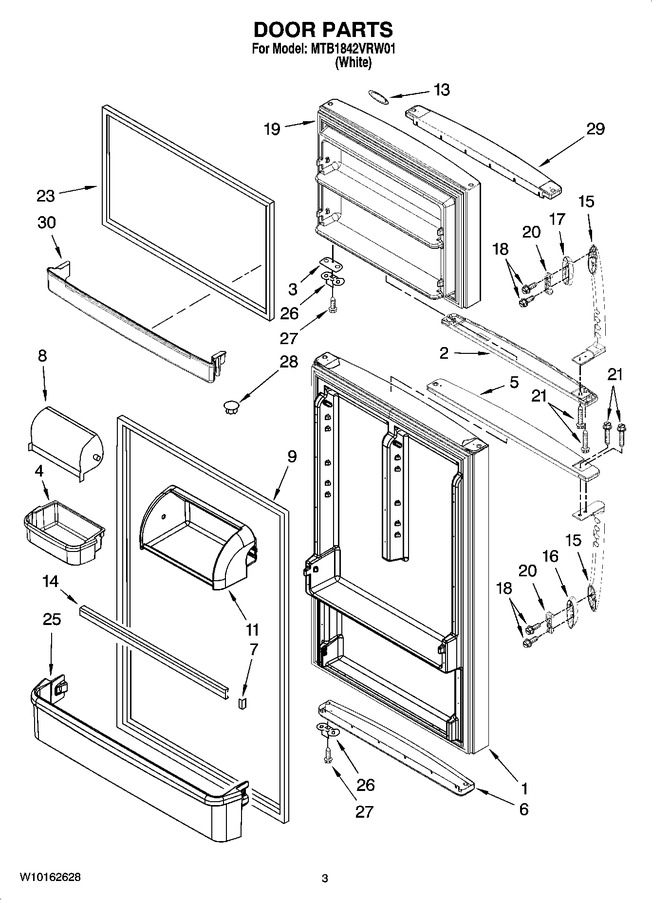

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2325620W		Refrigerator Door Panel (includes Illus. 5,6 & 9) (white)		Appelez-nous	-
2	2319200W		Endcap-handle Freezer (white)		Appelez-nous	-
3	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 7.55
4	W11396038		Bin, Door (3)   (Replaces: 2265126)				$ 161.94
5	2319201W		Endcap-handle Refrigerator (white)		Appelez-nous	-
6	2265647W		Endcap, Bottom (white)				$ 63.82
7	WP2156007		Plug-trim   (Replaces: 2156007)			Immediately	$ 8.03
8	2264478		Door, Compartment				$ 32.58
9	WP2319264W		Door Gasket, Magnetic (white)   (Replaces: 2264727)			Immediately	$ 329.08
11	2264477		Housing, Compartment   (Replaces: 2266057)				$ 97.04
13	2324038		Nameplate				$ 71.59
14	2316061		Trim, Door		Appelez-nous	-
15	2325603W		Handle-(rc & Fc)		Appelez-nous	-
16	2325607W		Collar-handle,(rc)		Appelez-nous	-
17	2325605W		Collar-handle,(fc)		Appelez-nous	-
18	W10122125		Screw		Appelez-nous	-
19	2325621W		Freezer Door Panel (includes Illus. 2,23 & 33) (white)		Appelez-nous	-
20	WP2255411		Clip-handle-mtng.   (Replaces: 2255411)				$ 36.55
21	8534058		Screw				$ 8.87
23	WP2319263W		Door Gasket, Magnetic (white)   (Replaces: 2264726)			Immediately	$ 265.20
25	2266146		Trim, Door Shelf		Appelez-nous	-
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
27	W10276642		Screw   (Replaces: 8533904)				$ 6.41
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
29	2265644W		Endcap, Top (white)				$ 148.05
30	2266148		Trim, Door Shelf (freezer)			Immediately	$ 262.35
