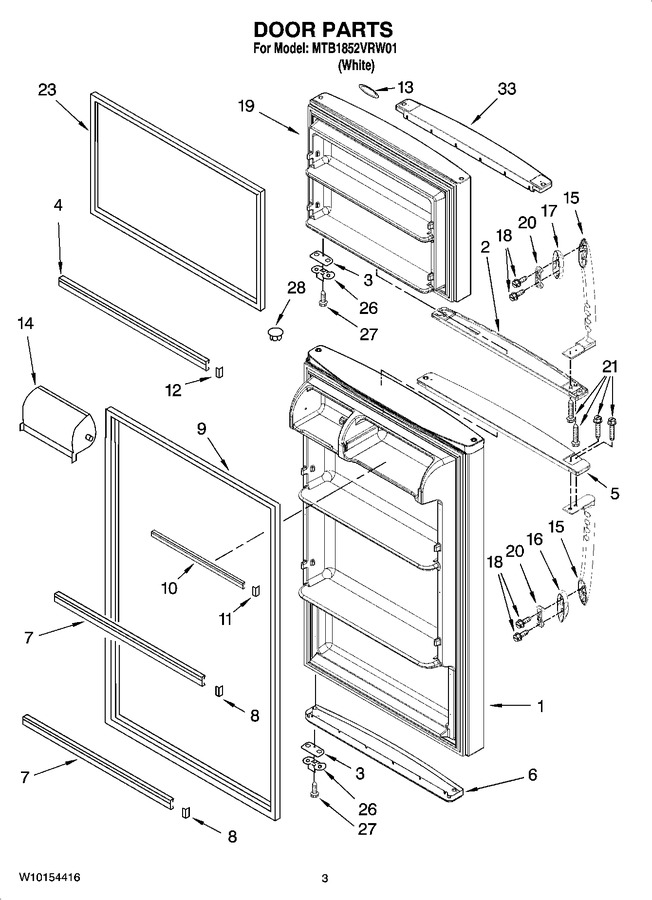

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10130792		Refrigerator Door (includes Illus. 5,6,9,15) (white)		Appelez-nous	-
2	2319200W		Endcap-handle Freezer (white)		Appelez-nous	-
3	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 7.55
4	WP2266727		Trim, Door Shelf   (Replaces: 2266727)			Immediately	$ 92.50
5	2319201W		Endcap-handle Refrigerator (white)		Appelez-nous	-
6	2265647W		Endcap, Bottom (white)				$ 63.82
7	WP2266738		Trim, Door Shelf   (Replaces: 2266738)				$ 111.69
8	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 13.18
9	WP2319264T		Door Gasket, Magnetic (beige)   (Replaces: 2263258)			Immediately	$ 192.71
10	W11129820		Trim, Door Shelf   (Replaces: 2266729)			Immediately	$ 127.34
11	WP2156007		Plug-trim   (Replaces: 2156007)			Immediately	$ 8.03
12	WP2156003		End Cap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
13	2324038		Nameplate				$ 71.59
14	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 58.76
15	2325603W		Handle-(rc & Fc)		Appelez-nous	-
16	2325607W		Collar-handle,(rc)		Appelez-nous	-
17	2325605W		Collar-handle,(fc)		Appelez-nous	-
18	W10122125		Screw		Appelez-nous	-
19	W10131458		Freezer Door (includes Illus.2,15,23,33) (white)		Appelez-nous	-
20	WP2255411		Clip-handle-mtng.   (Replaces: 2255411)				$ 36.55
21	8534058		Screw				$ 8.87
23	WP2319263T		Door Gasket, Magnetic (beige)   (Replaces: 2263257)			Immediately	$ 169.53
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
27	W10276642		Screw   (Replaces: 8533904)				$ 6.41
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
33	2265644W		Endcap, Top (white)				$ 148.05
