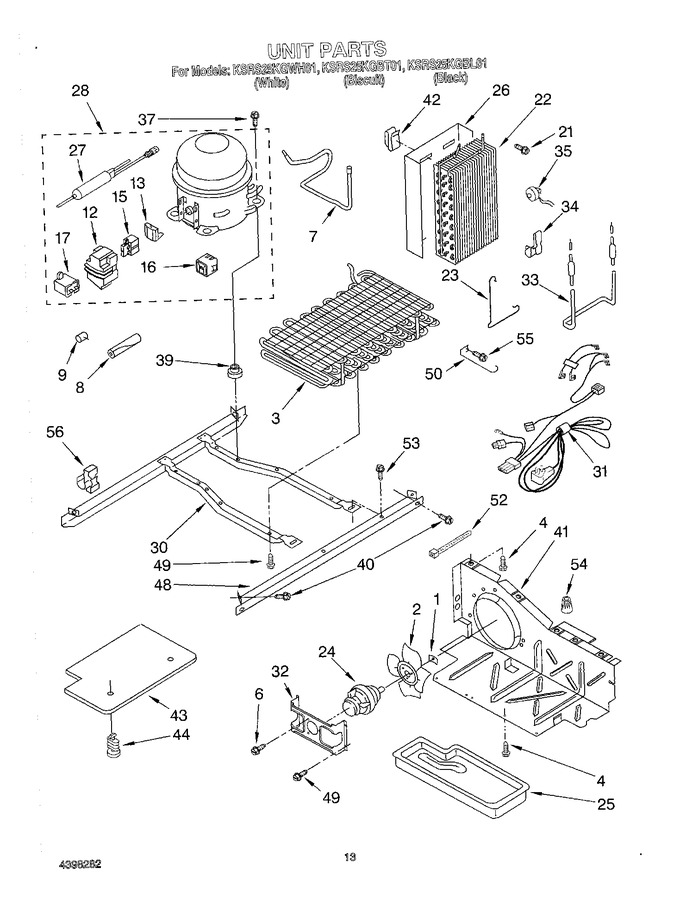

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	2190685		Blade, Fan				$ 52.00
3	2204242B		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
6	681390		Screw   (Replaces: 489099)				$ 13.71
7	2204239		Tube, Suction		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.82
12	WP2162358		Cover (production Alternate)   (Replaces: 2162358)				$ 95.29
12	WP2162358		Cover ((service))   (Replaces: 4387731)				$ 95.29
13	WP2187145		Overload, (production Alternate)   (Replaces: 2187145)				$ 153.92
13	WP4387835		Overload ((service, Includes Relay))   (Replaces: 4387835)				$ 177.09
15	2188393		Relay, Production Alternate		Appelez-nous	-
16	2204413		Start Device, Combination (production Alternate)		Appelez-nous	-
17	WP4387764		Capacitor (service)   (Replaces: 4387764)				$ 185.89
21	WP489478		Screw   (Replaces: 489478)				$ 8.18
22	WP2188823		Evaporator   (Replaces: 2209611)			Immediately	$ 381.49
23	2161324		Clamp		Appelez-nous	-
24	W10822259		Fan, Motor   (Replaces: 2176336)			Immediately	$ 221.30
25	1110674		Tray, Evaporator		Appelez-nous	-
26	2149294		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 57.13
28	W10309994		Compressor (includes Items 12, 13, 16, 17, 27) (also Order   (Replaces: 2183455)			Immediately	$ 643.55
28	876765		Tube Kit			Immediately	$ 90.65
30	2304904		Unit Mounting Frame   (Replaces: 2157396)		Appelez-nous	-
31	2188339		Unit, Harness		Appelez-nous	-
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.93
33	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 50.77
37	489387		Screw		Appelez-nous	-
39	W11661108		Grommet (4)   (Replaces: 2183042)				$ 15.21
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 101.20
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	2206281		Unit Cover, Bottom		Appelez-nous	-
44	489396		Clip				$ 11.26
48	2305374		Unit Mounting Rail   (Replaces: 1127906)				$ 84.67
49	488624		Screw		Appelez-nous	-
50	1110663		Guard, Fan		Appelez-nous	-
52	WPW10339879		Strap   (Replaces: 2172840)				$ 8.30
53	WP489427		Screw   (Replaces: 489427)				$ 7.84
54	227991		Wire Connector		Appelez-nous	-
55	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
56	W11729596		Kims9   (Replaces: 2155468)			Immediately	$ 150.98
56	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
56	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
56	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
56	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
56	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
56	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
56	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
56	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
56	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
56	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
56	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
56	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
56	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
56	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
56	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
56	1117510		Torx Key				$ 5.84
56	2208280		Clip, Wire & Tube		Appelez-nous	-
56	978026		Valve, Access (5/16``)			Immediately	$ 134.49
56	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
56	978028		Valve, Access (1/2)		Appelez-nous	-
56	978029		Valve Access (5/8``)				$ 93.85
56	978030		Valve, Access (3/4``)				$ 137.25
56	876764		Valve, Access(3/16``)			Immediately	$ 95.92
56	350942		Primer White (13 Oz. Spray Can)				$ 94.14
56	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
56	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
56	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 27.77
56	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
56	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
56	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 243.14
56	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
56	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
56	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
56	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
56	833938		Kit, Terminal Connector				$ 8.47
56	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
