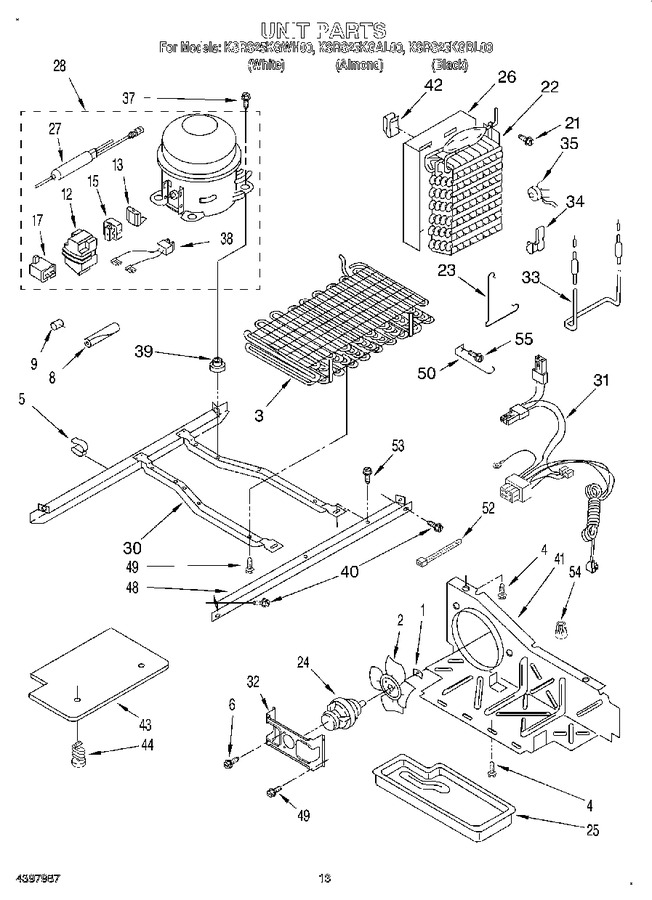

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 8.43 | |||||
| 2 | 1108179 | Fan, Blade |
|
$ 49.54 | |||||
| 3 | 2198175 | Condenser Assembly |
|
- | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 5 | 2155658 | Clip, Wire |
|
- | |||||
| 6 | 681390 | Screw (Replaces: 489099) |
|
$ 13.71 | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 9 | WP2158826 | Dampener (Replaces: 2158826) |
|
$ 1.82 | |||||
| 12 | WP2162358 | Cover (Replaces: 2162358) |
|
$ 95.29 | |||||
| 13 | WP2183456 | Overload (Replaces: 2183456) |
|
$ 147.19 | |||||
| 15 | 2183454 | Relay |
|
- | |||||
| 17 | 2169137 | Capacitor |
|
- | |||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 22 | 2164519 | Evaporator |
|
- | |||||
| 23 | 2161324 | Clamp |
|
- | |||||
| 24 | W10822259 | Fan, Motor (Replaces: 2176336) |
|
Immediately | $ 221.30 | ||||
| 25 | 1110674 | Tray, Evaporator |
|
- | |||||
| 26 | 2149294 | Heat Shield |
|
- | |||||
| 27 | W10843121 | Drier (Replaces: 2164409) |
|
Immediately | $ 57.13 | ||||
| 28 | W10309994 | Compressor (includes Items 12, 13, 15, 17, 27 & 38) (also Order) (Replaces: 2183455) |
|
Immediately | $ 643.55 | ||||
| 28 | 876765 | Tube Kit |
|
Immediately | $ 90.65 | ||||
| 30 | 2304904 | Unit Mounting Frame (Replaces: 2157396) |
|
- | |||||
| 31 | 2194747 | Unit, Harness |
|
- | |||||
| 32 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 12.93 | |||||
| 33 | WP2323198 | Heater, Defrost (Replaces: 2188175) |
|
Immediately | $ 90.70 | ||||
| 34 | 2161330 | Clip |
|
- | |||||
| 35 | WPW10225581 | Bi-metal, Defrost (Replaces: 2176066) |
|
Immediately | $ 50.77 | ||||
| 37 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 38 | WP2172890 | Wire Connector (Replaces: 2172890) |
|
$ 8.51 | |||||
| 39 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 40 | 489340 | Screw |
|
- | |||||
| 41 | W10896764 | Baffle, Air (Replaces: 2149128) |
|
$ 101.20 | |||||
| 42 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 43 | 2182058 | Unit Cover, Bottom |
|
- | |||||
| 44 | 489396 | Clip |
|
$ 11.26 | |||||
| 48 | 2305374 | Unit Mounting Rail (Replaces: 1127906) |
|
$ 84.67 | |||||
| 49 | 488624 | Screw |
|
- | |||||
| 50 | 1110663 | Guard, Fan |
|
- | |||||
| 52 | WPW10339879 | Strap (Replaces: 2172840) |
|
$ 8.30 | |||||
| 53 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 54 | 227991 | Wire Connector |
|
- | |||||
| 55 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 55 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 55 | 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | |||||
| 55 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 55 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 55 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 55 | 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| 55 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 55 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 55 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 55 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 55 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 55 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 55 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 55 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 55 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 55 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 55 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 55 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | |||||
| 55 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| 55 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 55 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 55 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 55 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 55 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 55 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 55 | 876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) |
|
$ 243.14 | |||||
| 55 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 55 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 55 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 55 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 55 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 55 | WPW10312300 | Ice Container Assembly (Replaces: 2196011) |
|
$ 388.09 | |||||
| 55 | WPW10312300 | Ice Crusher Mechanism Assembly (Replaces: 2149072) |
|
$ 388.09 | |||||
| 55 | W11729596 | Kims9 (Replaces: 2155468) |
|
Immediately | $ 150.98 | ||||
| LIT628370 | Modular Icemaker Service Sheet |
|
- | ||||||
| LIT2186578 | Energy Label |
|
- | ||||||
| LIT2186572 | Service & Wiring Sheet |
|
- | ||||||
| LIT2186479 | Use & Care Guide |
|
- | ||||||
| 1117510 | Torx Key |
|
$ 5.84 |
