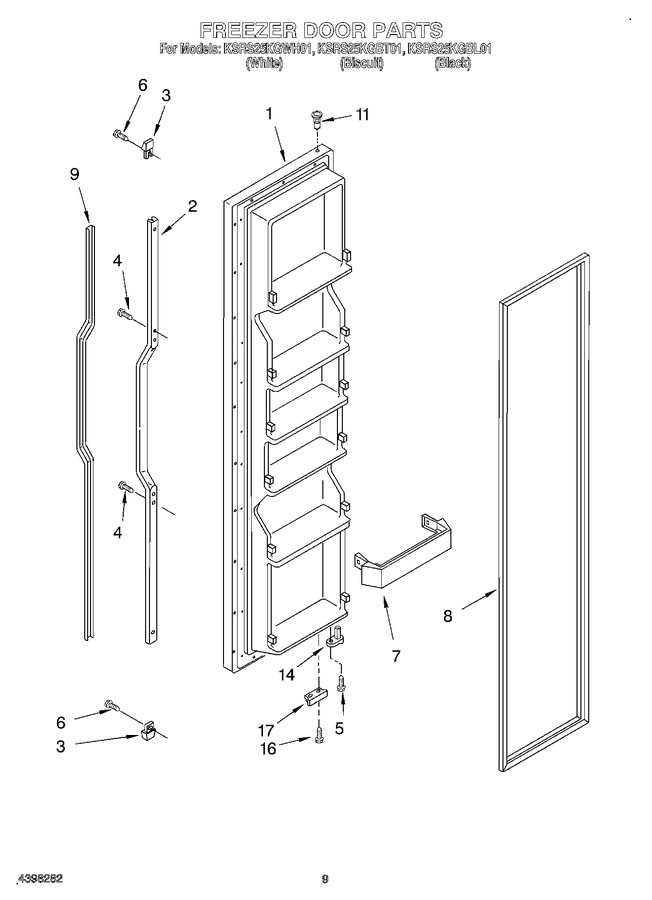

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2186422T		Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2186422B		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2186422W		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2194777B		Retainer, Insert (black)		Appelez-nous	-
2	2194777T		Retainer, Insert (biscuit)		Appelez-nous	-
2	2194777W		Retainer, Insert (white)		Appelez-nous	-
3	2194778B		End Cap (2) (black)		Appelez-nous	-
3	2194778W		End Cap (2) (white)		Appelez-nous	-
3	2194778T		End Cap (2) (biscuit)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 8.25
5	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
6	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (service) (mist Beige)				$ 325.70
8	2159082		Door Gasket, Magnetic (service) (black)				$ 332.49
9	2186863T		Insert, Handle (biscuit)		Appelez-nous	-
9	2173825		Insert, Handle (white)		Appelez-nous	-
9	2173829		Insert, Handle (black)		Appelez-nous	-
11	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
16	WP489483		Screw   (Replaces: 489420)				$ 11.41
17	2195952		Bracket, Door Stop (black)		Appelez-nous	-
17	2195950		Bracket, Door Stop (chrome)				$ 5.84
