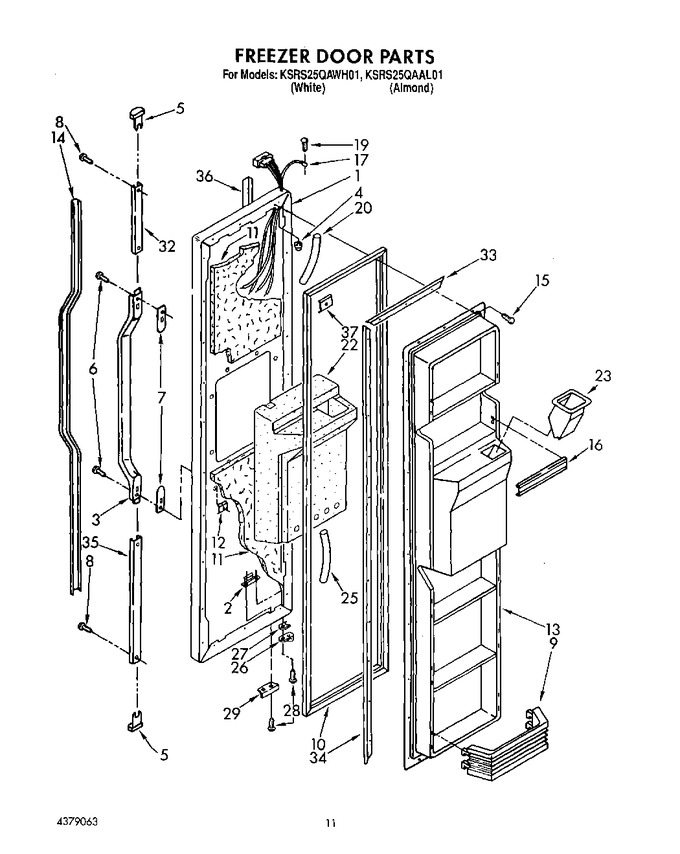

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1125963		Freezer, Door Panel (also Order Item 11) (almond)		Appelez-nous	-
1	1125957		Freezer, Door Panel (also Order Item 11) (white)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	1107215		Handle Assembly		Appelez-nous	-
4	939886		Seal, Hinge Pin		Appelez-nous	-
5	1107341		End Cap (2)		Appelez-nous	-
6	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
7	1107651		Spacer, Handle		Appelez-nous	-
8	489075		Screw		Appelez-nous	-
9	1125676		Shelf Bin (4)		Appelez-nous	-
10	1125928		Door Gasket, Magnetic		Appelez-nous	-
11	876029		Foam Insulation		Appelez-nous	-
12	941242		Screw Anchor (2)		Appelez-nous	-
13	1125608		Panel, Interior Door		Appelez-nous	-
14	1117949		Insert, Handle (almond)		Appelez-nous	-
14	1117948		Insert, Handle (white)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
16	1126495		Trim, Door Shelf		Appelez-nous	-
17	1119212		Harness, Door		Appelez-nous	-
19	WP488234		Screw   (Replaces: 488889)				$ 7.08
20	1119060		Tube, Door Wiring		Appelez-nous	-
22	1119038		Insulation, Dispenser		Appelez-nous	-
23	1119036		Chute, Ice		Appelez-nous	-
25	2147080		Tube, Door Wiring		Appelez-nous	-
26	4318165		Door Closer, Upper Cam   (Replaces: 1104788)			Immediately	$ 29.74
27	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
28	WP489069		Screw   (Replaces: 488938)			Immediately	$ 8.40
29	988420		Bracket, Door Stop		Appelez-nous	-
32	1107243		Retainer, Insert		Appelez-nous	-
33	1118306		Gasket Retainer, Top & Bottom		Appelez-nous	-
34	1118302		Gasket Retainer, Side (2)		Appelez-nous	-
35	1117952		Retainer, Insert		Appelez-nous	-
36	1119062		Trim, Door		Appelez-nous	-
37	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
