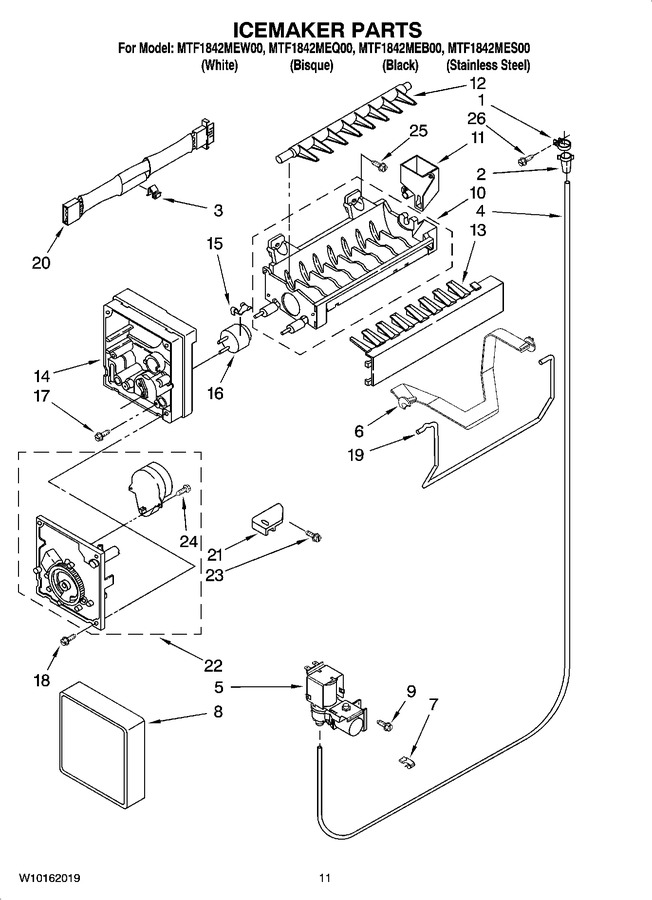

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488878		Clamp, Tube   (Replaces: 488878)				$ 12.18
2	4387491		Insert, Tube   (Replaces: 2181939)				$ 8.23
3	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
4	W10823511		Tube Water   (Replaces: 2181943)			Immediately	$ 32.41
5	WP2315576		Valve Solenoid (single)   (Replaces: 2315576)			Immediately	$ 95.98
6	78562001		Adjuster-ice Level		Appelez-nous	-
7	2210495		Clip, Water Valve		Appelez-nous	-
8	79191001		Cover		Appelez-nous	-
9	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
10	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: W10122527)				$ 233.15
11	W10122561		Cup, Water Fill   (Replaces: 628515)				$ 29.16
12	WP627843		Ejector   (Replaces: 627843)				$ 87.78
13	WP2182124		Ice Striper   (Replaces: 2182124)				$ 90.35
14	WP2195914		Support   (Replaces: 2194712)				$ 109.80
15	WP2315522		Retainer,thermostat   (Replaces: 2315522)				$ 11.60
16	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 628397)				$ 114.64
17	8533917		Screw				$ 14.04
18	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
19	W10138107		Shut Off Arm		Appelez-nous	-
20	WP2187464		Harness, Wiring   (Replaces: 2187464)				$ 130.80
21	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 33.78
22	W10190935		Module Assembly (includes Item 24)   (Replaces: 626680)			Immediately	$ 110.07
23	WP489478		Screw   (Replaces: 489478)				$ 8.18
24	489136		Screw, 3-24 X 23/64				$ 10.80
25	WP488163		Screw   (Replaces: 488208)				$ 7.92
26	WP489442		Screw, 8-18 X 1/2   (Replaces: 489442)			Immediately	$ 11.49
100	4317943		Icemaker,complete Assembly   (Replaces: W10122496)			Immediately	$ 183.45
NI	833938		Kit, Terminal Connector				$ 8.47
NI	31462		Cleaner, Stainless Steel		Appelez-nous	-
NI	72032		Brush Touch-up Kit (black)			Immediately	$ 18.69
NI	72017		Brush Touch-up Kit (white)			Immediately	$ 12.30
NI	4392901		Enamel, Biscuit (12 Oz. Spray Can)		Appelez-nous	-
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.78
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 182.65
NI	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
NI	876370		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	876370		Kit, Insulation (2 Pcs.3`` X 24 `` X 48``)				$ 243.14
NI	876029		Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``)		Appelez-nous	-
NI	511873		Touch-up, White Porcelain (2 Oz.)				$ 51.75
NI	606755		Bag, Insulation(36-5/8`` X 46``)				$ 82.37
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	799832		Kit, Porcelain Repair (white)		Appelez-nous	-
NI	350942		Primer, White (12 Oz. Spray Can)				$ 94.14
NI	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
NI	350930		Enamel, White (12 Oz. Spray Can)			Immediately	$ 40.12
NI	4392899		Brush Touch-up Kit (biscuit)			Immediately	$ 27.77
NI	799344		Enamel, White (1 Qt. Uncut)				$ 237.46
NI	4392900		Enamel, Biscuit (1 Qt. Uncut)		Appelez-nous	-
NI	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
NI	1117510		Torx Key				$ 5.84
