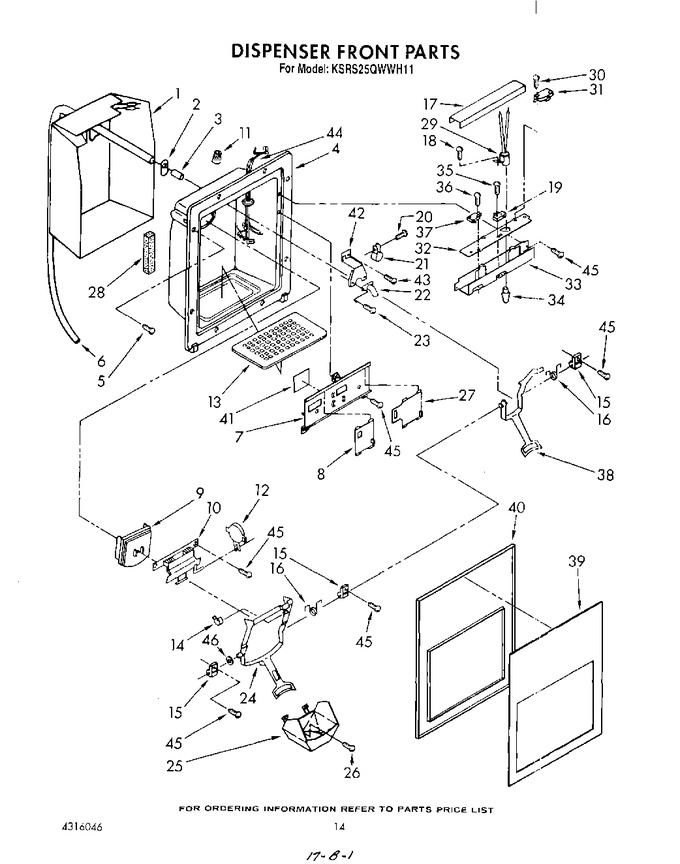

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2149097 | Heater, Dispenser |
|
- | |||||
| 2 | 987048 | Grommet |
|
- | |||||
| 3 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 7.84 | |||||
| 4 | 1124715 | Housing, Dispenser (white) |
|
- | |||||
| 4 | 1125969 | Housing, Dispenser (almond) |
|
- | |||||
| 5 | W11693756 | Screw 8 X 5/8 (10) (Replaces: 488687) |
|
Immediately | $ 14.06 | ||||
| 6 | W10823511 | Tube, Water (Replaces: 987053) |
|
Immediately | $ 32.41 | ||||
| 7 | 1126023 | Frame, Slides (almond) |
|
- | |||||
| 7 | 1124724 | Frame, Slides (white) |
|
- | |||||
| 8 | 1126024 | Slide, Cube/crush Switch (almond) |
|
- | |||||
| 8 | 1124725 | Slide, Cube/crush Switch (white) |
|
- | |||||
| 9 | 2147096 | Door, Ice |
|
- | |||||
| 10 | 1119198 | Door Mechanism Assembly (includes Item 9) |
|
- | |||||
| 11 | 227991 | Wire Connector |
|
- | |||||
| 12 | WP1120581 | Mechanism Delay (Replaces: 1120581) |
|
$ 213.07 | |||||
| 13 | 983900 | Grille, Overflow |
|
$ 27.30 | |||||
| 14 | 987917 | Clip, Bearing (2) |
|
- | |||||
| 15 | 983697 | Bearing, Lever (3) |
|
- | |||||
| 16 | 983696 | Spring, Lever (2) |
|
$ 21.26 | |||||
| 17 | 1119041 | Shield, Wiring |
|
- | |||||
| 18 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 10.88 | |||||
| 19 | 1119205 | Switch, Light |
|
- | |||||
| 20 | WP488787 | Screw, (8-18 X 1/2) (Replaces: 488886) |
|
$ 10.58 | |||||
| 21 | WP488878 | Clamp (Replaces: 488878) |
|
$ 11.60 | |||||
| 22 | WP4388152 | Fitting, Water (white) (Replaces: 2150328) |
|
$ 276.43 | |||||
| 22 | WP4388152 | Fitting, Water (almond) (Replaces: 2150329) |
|
$ 276.43 | |||||
| 23 | WP965173 | Screw, 8 X 3/8 (2) (Replaces: 487916) |
|
Immediately | $ 10.72 | ||||
| 24 | 2147476 | Lever Assembly, Ice Dispenser (white) |
|
- | |||||
| 24 | 1125972 | Lever Assembly, Ice Dispenser (almond) |
|
- | |||||
| 25 | 1124730 | Guide, Ice (white) |
|
$ 19.06 | |||||
| 25 | 1126026 | Guide, Ice (almond) |
|
- | |||||
| 26 | 488892 | Screw |
|
- | |||||
| 27 | 1124726 | Slide, Light Switch (white) |
|
- | |||||
| 27 | 1126025 | Slide, Light Switch (almond) |
|
- | |||||
| 28 | 482672 | Seal |
|
- | |||||
| 29 | 1121418 | Lamp Holder |
|
- | |||||
| 30 | 488361 | Screw (4) |
|
- | |||||
| 31 | 841336 | Switch (2) |
|
- | |||||
| 32 | 1119208 | Insulator, Control Bracket |
|
- | |||||
| 33 | 1119204 | Bracket, Control |
|
- | |||||
| 34 | WP22002263 | Bulb, Light (Replaces: 851389) |
|
Immediately | $ 13.66 | ||||
| 35 | 489271 | Screw (2) |
|
- | |||||
| 36 | 489155 | Screw, |
|
- | |||||
| 37 | 934316 | Switch |
|
- | |||||
| 38 | 2147478 | Lever Assembly, Water Dispenser (white) |
|
- | |||||
| 38 | 1125974 | Lever Assembly, Water Dispenser (almond) |
|
- | |||||
| 39 | 1125803 | Insert, Cover (black) |
|
- | |||||
| 39 | 1125798 | Insert, Cover (white) |
|
- | |||||
| 39 | 1125801 | Insert, Cover (almond) |
|
- | |||||
| 40 | 1125807 | Cover, Housing (includes Item 39) (black) |
|
- | |||||
| 40 | 1125673 | Cover, Housing (includes Item 39) (white) |
|
- | |||||
| 40 | 1125805 | Cover, Housing (includes Item 39) (almond) |
|
- | |||||
| 41 | 1121404 | Heat Shield, Frame |
|
- | |||||
| 42 | 987049 | Bracket, Water |
|
- | |||||
| 43 | 488316 | Screw, 8-18 X 3/4 |
|
- | |||||
| 44 | 1119209 | Wiring Assembly, Door |
|
- | |||||
| 45 | WP3400906 | Screw, 9-12 X 1/2 (Replaces: 489000) |
|
$ 7.84 | |||||
| 46 | 488307 | Washer (repair) |
|
- |
