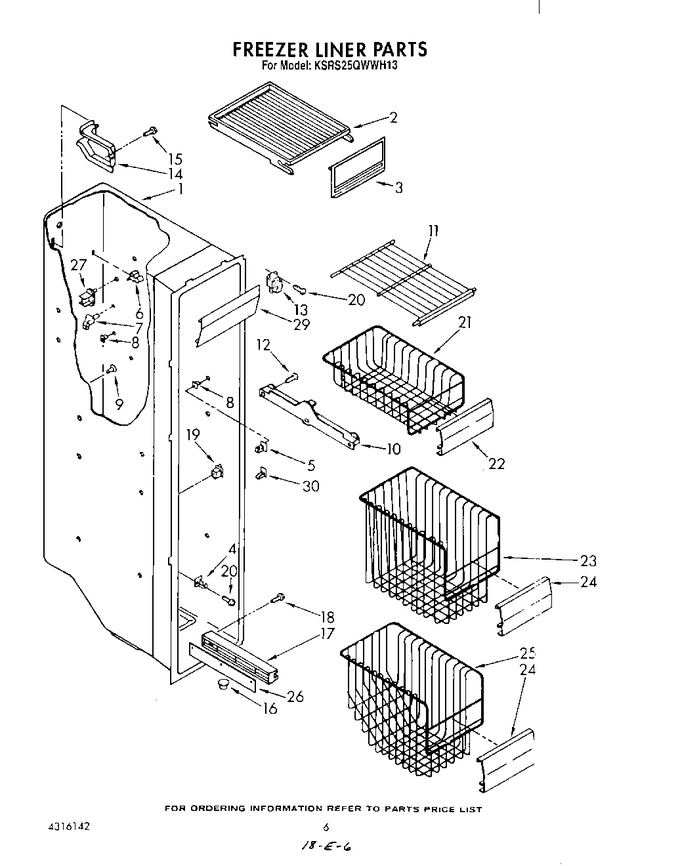

05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Air Flow


12 - Control


13 - Ice Maker , Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1125824		Shelf, Top Compartment		Appelez-nous	-
3	1125657		Door, Ice Compartment		Appelez-nous	-
4	1108436		Evaporator, Support		Appelez-nous	-
5	946356		Stud, R.s. Front		Appelez-nous	-
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	1115317		Support, Stud (4)		Appelez-nous	-
8	946355		Support, Stud (2)		Appelez-nous	-
9	1110779		Grommet (2)		Appelez-nous	-
10	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
10	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
11	1125609		Shelf		Appelez-nous	-
12	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
13	942842		Terminal Block		Appelez-nous	-
14	1114607		Wiring Cover		Appelez-nous	-
15	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
16	942768		Fitting, Drain		Appelez-nous	-
17	1113678		Shelf Track (right Side (3))		Appelez-nous	-
17	1113679		Shelf Track (left Side (3))		Appelez-nous	-
18	W11693756		Screw   (Replaces: 487042)			Immediately	$ 14.76
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
20	WP489478		Screw   (Replaces: 489242)				$ 8.18
21	2152095		Basket, Middle		Appelez-nous	-
22	1125770		Front, Basket		Appelez-nous	-
23	2152093		Basket, Upper		Appelez-nous	-
24	1125612		Front, Basket		Appelez-nous	-
25	2152102		Basket, Lower		Appelez-nous	-
26	1129195		Shim, Track		Appelez-nous	-
27	1115386		Stud, Shelf (4) Compartment		Appelez-nous	-
29	1115389		Light Lens		Appelez-nous	-
30	1106982		Stud, R.s. Rear		Appelez-nous	-
