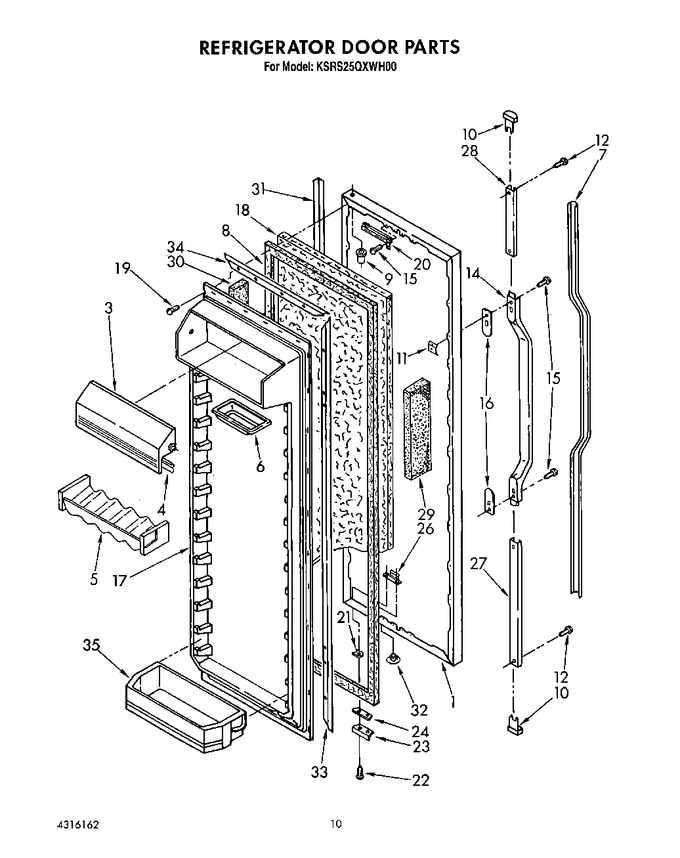

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1117863		Refrigerator Door (white)		Appelez-nous	-
1	1117867		Refrigerator Door (almond (also Order Item 18))		Appelez-nous	-
3	1125733		Door, Compartment		Appelez-nous	-
4	1125695		Gasket, Utility Door		Appelez-nous	-
5	1125981		Holder, Beverage		Appelez-nous	-
6	1125936		Butter, Tray		Appelez-nous	-
7	1125702		Insert, Handle (white)		Appelez-nous	-
7	1125703		Insert, Handle (almond)		Appelez-nous	-
8	1125929		Door Gasket, Magnetic		Appelez-nous	-
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	1107341		End Cap, Handle		Appelez-nous	-
11	941242		Screw Anchor (2)		Appelez-nous	-
12	489361		Screw (2)		Appelez-nous	-
14	1107215		Handle Assembly		Appelez-nous	-
15	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 487909)			Immediately	$ 8.28
16	1107651		Spacer, Handle		Appelez-nous	-
17	1117905		Panel, Interior Door		Appelez-nous	-
18	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
19	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
19	WP489069		Screw, 7 X 1/2 (30)   (Replaces: 489101)			Immediately	$ 8.40
20	1117898		Door Closer, Upper Cam		Appelez-nous	-
21	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
22	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
23	988420		Bracket, Door Stop		Appelez-nous	-
24	988421		Shim		Appelez-nous	-
26	988402		Tap Plate		Appelez-nous	-
27	1107209		Retainer, Insert (bottom)		Appelez-nous	-
28	1107243		Retainer, Insert		Appelez-nous	-
29	1126149		Dike, Door Handle Side		Appelez-nous	-
30	1126150		Dike, Door Hinge Side		Appelez-nous	-
31	1119062		Trim, Door		Appelez-nous	-
32	534927		Hole Plug (2)		Appelez-nous	-
33	1118302		Gasket Retainer, Side (2)		Appelez-nous	-
34	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
35	4318417		Handle Inserts (black Grille Kit)		Appelez-nous	-
35	1125555		Shelf Bin (4)		Appelez-nous	-
35	4318336		Trim Kit		Appelez-nous	-
35	4210348		Acrylic Panel Kit (black)		Appelez-nous	-
35	4211148		Acrylic Panel Kit (white)		Appelez-nous	-
35	4211147		Acrylic Panel Kit (almond)		Appelez-nous	-
35	4318339		Handle Inserts (black)		Appelez-nous	-
35	4318340		Handle Inserts (woodgrain)		Appelez-nous	-
