Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1125957 Freezer, Door Panel (also Order Item 11) (white) Appelez-nous -
1 1125963 Freezer, Door Panel (also Order Item 11) (almond) Appelez-nous -
2 988402 Tap Plate Appelez-nous -
3 1107215 Handle Assembly Appelez-nous -
4 939886 Seal, Hinge Pin Appelez-nous -
5 1107341 End Cap (2) Appelez-nous -
6 WP488729 Screw, 8 X 1/2 (4)   (Replaces: 487909) In-Stock Immediately $ 8.28

7 1107651 Spacer, Handle Appelez-nous -
8 489075 Screw (2) Appelez-nous -
9 1125676 Shelf Bin (4) Appelez-nous -
10 1125928 Door Gasket, Magnetic Appelez-nous -
11 876029 Foam Insulation Appelez-nous -
12 941242 Screw Anchor (2) Appelez-nous -
13 1125608 Panel, Interior Door Appelez-nous -
14 1117949 Insert, Handle (almond) Appelez-nous -
14 1117948 Insert, Handle (white) Appelez-nous -
15 WPW10141645 Screw (repair)   (Replaces: 489084) Special Order $ 8.05

15 WP489069 Screw, 7 X 1/2 (28)   (Replaces: 489101) In-Stock Immediately $ 8.40

16 1126495 Trim, Door Shelf Appelez-nous -
17 1119212 Harness, Door (includes Item 18) Appelez-nous -
19 WP488234 Screw, 8-32 X 5/32   (Replaces: 488889) Special Order $ 7.08

20 1119060 Tube, Door Wiring Appelez-nous -
21 850145 Wire Connector Appelez-nous -
22 1119038 Insulation, Dispenser Appelez-nous -
23 1119036 Chute, Ice Appelez-nous -
25 2147080 Tube, Door Wiring Appelez-nous -
26 4318165 Door Closer, Upper Cam   (Replaces: 1104788) In-Stock Immediately $ 29.74

27 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.96

28 WP489069 Screw, 8 X 1/2   (Replaces: 488938) In-Stock Immediately $ 8.40

29 988420 Bracket, Door Stop Appelez-nous -
32 1107243 Retainer, Insert Appelez-nous -
33 1118306 Gasket Retainer, Top & Bottom Appelez-nous -
34 1118302 Gasket Retainer, Side (2) Appelez-nous -
35 1117952 Retainer, Insert Appelez-nous -
36 1119062 Trim, Door Appelez-nous -
37 WP939101 Screw Anchor (2)   (Replaces: 939101) Special Order $ 7.88


    View Diagram in Separate Window     Print Icon   Print Part List

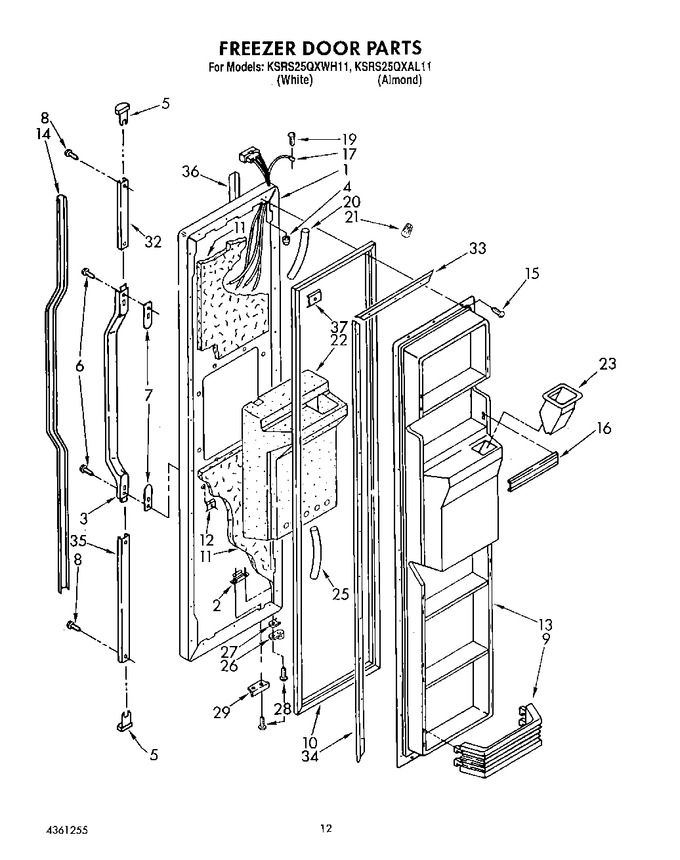

Diagram for KSRS25QXAL11
