SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container, Lit/optional


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit

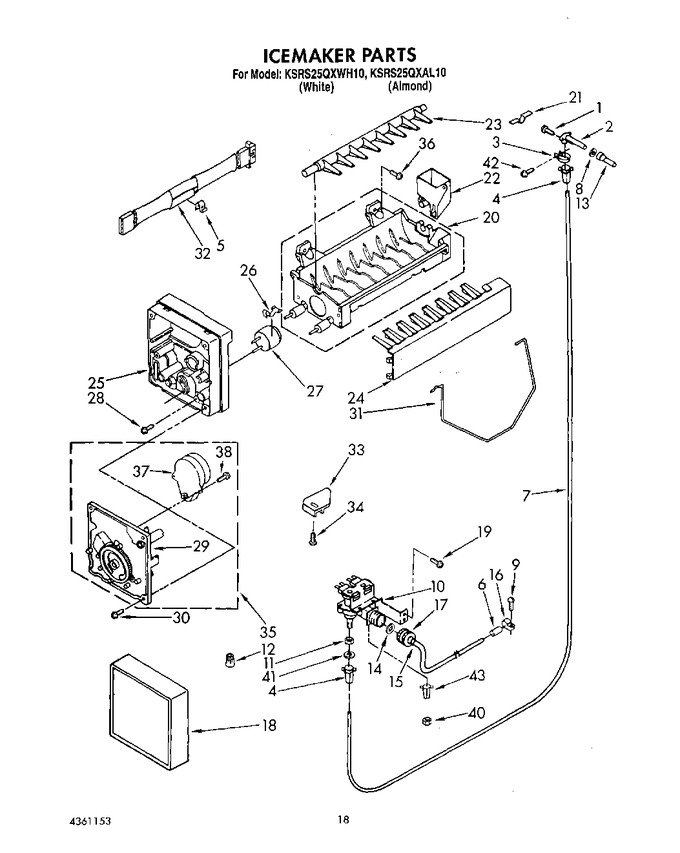

11 - Icemaker


12 - Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
2	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 12.59
3	WP488878		Clamp, Tube   (Replaces: 488878)				$ 12.18
4	4387491		Insert, Tube   (Replaces: 841707)				$ 8.23
5	WP628379		Clip, Fuse   (Replaces: 628288)				$ 11.10
6	WP2158826		Dampener   (Replaces: 836074)				$ 1.82
7	W10823511		Tube, Water   (Replaces: 653415)			Immediately	$ 32.41
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
9	486214		Screw, 8 X 1/2		Appelez-nous	-
10	4318046		Valve, Solenoid   (Replaces: 628295)			Immediately	$ 92.87
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 11.51
12	227991		Connector Wire		Appelez-nous	-
13	1114644		Tube, Water Inlet		Appelez-nous	-
14	628337		Washer		Appelez-nous	-
15	627860		Tube, Inlet Valve		Appelez-nous	-
16	510716		Clamp Tube		Appelez-nous	-
17	537588		Nut, Valve		Appelez-nous	-
18	628355		Cover		Appelez-nous	-
19	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 22.22
20	WPW10190929		Mold & Heater Assembly (also Order   (Replaces: 628228)				$ 233.15
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 12.78
21	652604		Clip		Appelez-nous	-
22	WP628356		Bearing & Inlet   (Replaces: 2155035)				$ 53.75
23	WP627843		Ejector   (Replaces: 627843)				$ 87.78
24	WP2182124		Ice Striper   (Replaces: 627788)				$ 90.35
25	WP2195914		Support   (Replaces: 627790)				$ 109.80
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.60
27	542369		Cement Alumilastic)		Appelez-nous	-
27	WP627985		Thermostat (also Order)   (Replaces: 627985)				$ 114.64
28	8533917		Screw   (Replaces: 489322)				$ 14.04
29	W10190935		Module Assembly   (Replaces: 628332)			Immediately	$ 110.07
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
31	W11807379		Shut Off Arm   (Replaces: 628187)			Immediately	$ 63.21
32	WP2187464		Harness, Wiring   (Replaces: 628256)				$ 130.80
33	W11500948		Bracket   (Replaces: 628229)			Immediately	$ 33.78
34	489365		Screw, 8-32 X 27/64		Appelez-nous	-
35	W10190935		Module Assembly (includes Items 29, 37 & 38)   (Replaces: 483105)			Immediately	$ 110.07
36	WP488163		Screw (2)   (Replaces: 488208)				$ 7.92
37	W10190935		Motor   (Replaces: 628302)			Immediately	$ 110.07
38	489136		Screw (3-24 X 23/64)				$ 10.80
40	1129179		Nut, Compression		Appelez-nous	-
41	00753257		``o`` Ring   (Replaces: 488819)			Immediately	$ 295.49
42	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
43	1129177		Insert				$ 5.27
100	4317943		Complete Icemaker Assembly   (Replaces: 4211173)			Immediately	$ 183.45

    View Diagram in Separate Window       Print Part List
