SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts

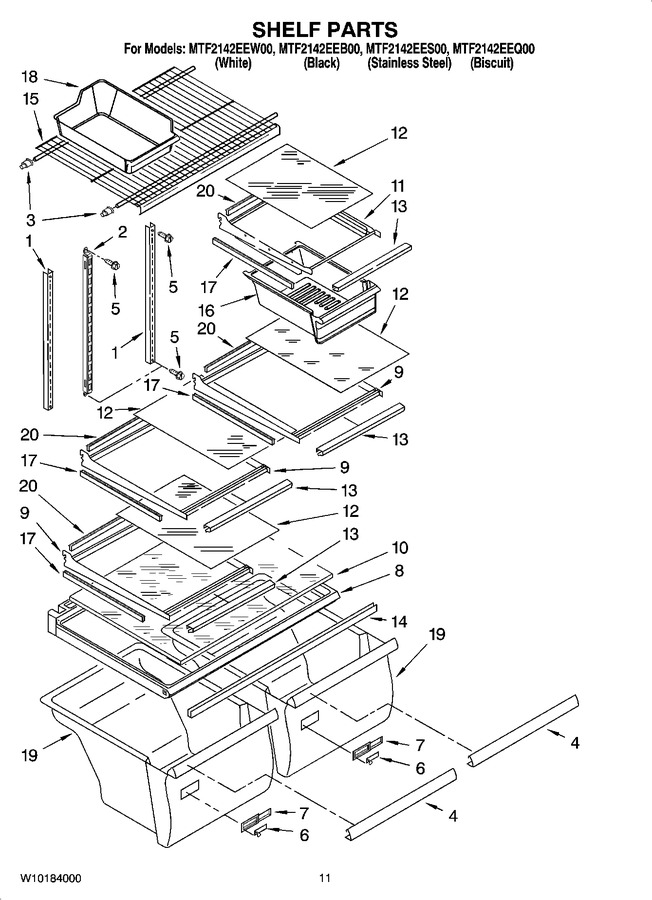

06 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2300520		Shelf, Ladder Center				$ 75.36
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.00
4	2320357		Trim, Crisper Pan		Appelez-nous	-
5	WP489478		Screw   (Replaces: 489478)				$ 7.75
6	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
7	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 15.06
8	WP2314549		Crisper Cover   (Replaces: 2314549)				$ 265.81
9	2201102E		Shelf, Cantilever		Appelez-nous	-
10	WP2176225		Insert, Crisper Cover   (Replaces: 2210573)				$ 251.82
11	2201106		Pan Shelf, Cantilever				$ 77.79
12	2200987		Glass, Shelf		Appelez-nous	-
13	2188685		Trim-shelf-front		Appelez-nous	-
14	WP2172748		Crisper Support   (Replaces: 2314478)				$ 97.22
15	2184667		Shelf, Freezer		Appelez-nous	-
16	WP2218132K		Pan, Meat   (Replaces: 2218132)			Immediately	$ 159.64
17	2188711		Trim Shelf, Side		Appelez-nous	-
18	2254352A		Bucket, Ice   (Replaces: 2254352)				$ 55.85
19	W10854037		Crisper Pan (includes Illus. 6 & 7)   (Replaces: 2218130)			Immediately	$ 170.66
20	WP2188689		Trim-shelf-rear   (Replaces: 2188687)				$ 115.76
NI	350930		Enamel, White (12 Oz. Spray Can)			Immediately	$ 38.21
NI	4392899		Brush Touch-up Kit (biscuit)			Immediately	$ 26.45
NI	799344		Enamel, White (1 Qt. Uncut)				$ 237.46
NI	4392900		Enamel, Biscuit (1 Qt. Uncut)		Appelez-nous	-
NI	786032		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
NI	833938		Kit, Terminal Connector				$ 8.07
NI	1117510		Torx Key				$ 5.84
NI	72032		Brush Touch-up Kit (black)			Immediately	$ 18.69
NI	72017		Brush Touch-up Kit (white)			Immediately	$ 12.30
NI	4392901		Enamel, Biscuit (12 Oz. Spray Can)		Appelez-nous	-
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.18
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 173.95
NI	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
NI	876370		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	876370		Kit, Insulation (2 Pcs.3`` X 24 `` X 48``)				$ 231.56
NI	876029		Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``)		Appelez-nous	-
NI	511873		Touch-up, White Porcelain (2 Oz.)				$ 49.29
NI	606755		Bag, Insulation(36-5/8`` X 46``)				$ 78.45
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	799832		Kit, Porcelain Repair (white)		Appelez-nous	-
NI	350942		Primer, White (12 Oz. Spray Can)				$ 89.66
NI	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 57.04

    View Diagram in Separate Window       Print Part List
