01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts, Optional Parts

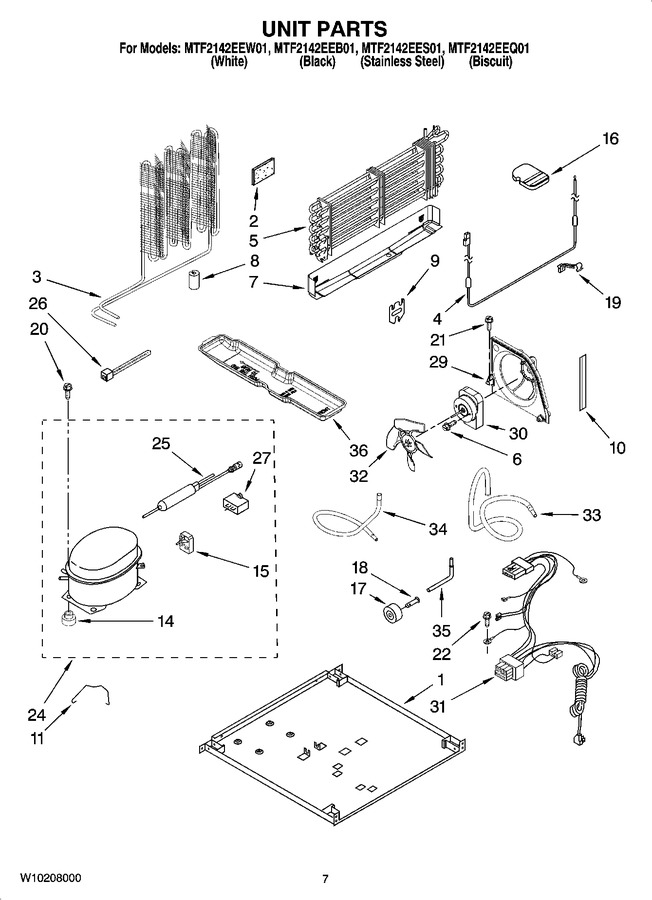

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320187		Plate, Unit Mounting		Appelez-nous	-
2	W11553819		Insulation, Sound Dampening   (Replaces: 2169104)			Immediately	$ 14.07
3	2214960		Condenser				$ 141.57
4	WPW10140847		Heater, Defrost   (Replaces: 2314157)				$ 159.37
5	2254249		Evaporator Assy.				$ 239.15
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	2254295		Drain Pan				$ 74.91
8	W10852725		Grommet, Cond (4)   (Replaces: 2319835)				$ 7.70
9	2176301		Bracket, Heater				$ 6.37
10	2300638		Extension, Air Baffle				$ 52.69
11	W11661170		Strap   (Replaces: W10174384)			Immediately	$ 11.30
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
15	WPW10194431		Start-device Combination (start Relay And Overload For Production Compressor Only)   (Replaces: W10194431)			Immediately	$ 86.85
16	2201185		Support Block				$ 8.21
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 18.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw   (Replaces: 489373)				$ 7.42
21	3400518		Screw				$ 12.98
22	WP489128		Screw   (Replaces: 488500)				$ 10.88
24	W10233960		Compressor (includes Illus. 14,25,27) (also Order 482801 Installation Kit & 876765 Tube Kit)   (Replaces: W10164016)			Immediately	$ 513.66
25	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
26	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.90
27	WPW10662129		Capacitor (production)   (Replaces: 2264017)			Immediately	$ 58.86
27	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
29	WP2315541		Air Baffle   (Replaces: 2315541)			Immediately	$ 83.80
30	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 113.96
31	2187382		Wire Assembly Unit				$ 264.30
32	W11458267		Fan, Blade   (Replaces: 2225834)			Immediately	$ 23.99
33	W10189808		Tube, Discharge		Appelez-nous	-
34	W10189806		Tube, Suction		Appelez-nous	-
35	2154109		Tube, Process				$ 72.63
36	WP2254574		Tray, Evaporator   (Replaces: 2254574)				$ 174.85
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
