SELECT A DIAGRAM

01 - Cabinet Parts

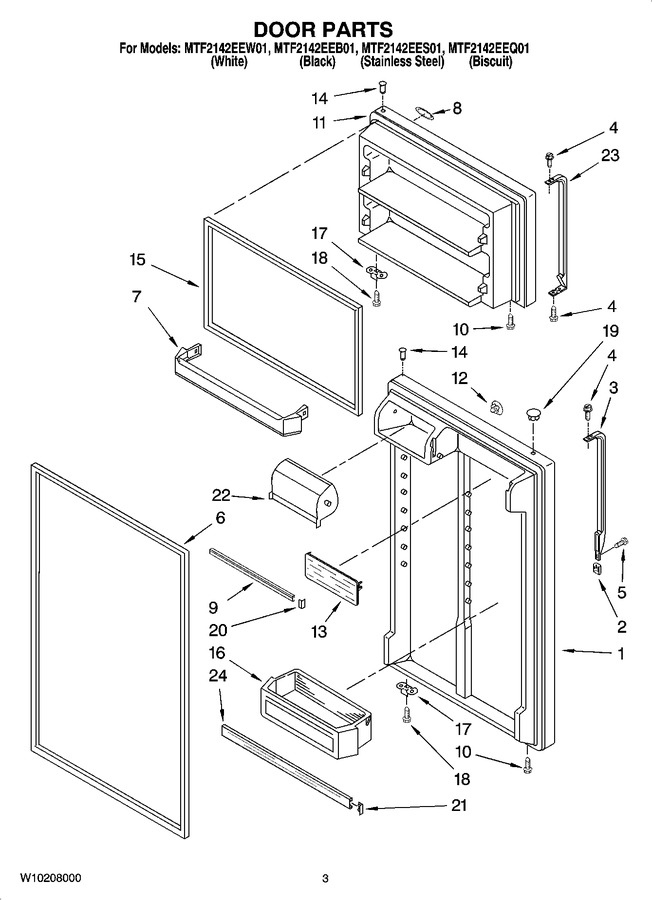

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11023688		Refrigerator Door (includes Illus. 6 & 14) (biscuit)   (Replaces: 2205284)		Appelez-nous	-
1	W11023679		Refrigerator Door (includes Illus. 6 & 14) (white)   (Replaces: 2183920)				$ 722.23
1	W11023687		Refrigerator Door (includes Illus. 6 & 14) (black)   (Replaces: 2200714)				$ 767.09
1	2225437		Refrigerator Door (includes Illus. 6 & 14) (stainless Steel)		Appelez-nous	-
2	2193143W		Handle, Trim (white)				$ 21.66
2	2193143T		Handle, Trim (biscuit)		Appelez-nous	-
2	2193143B		Handle, Trim (black)		Appelez-nous	-
3	WP2254533W		Handle, Refrigerator (white)   (Replaces: 2254533W)				$ 171.95
3	2254533B		Handle, Refrigerator (black)				$ 68.18
3	2254533T		Handle, Refrigerator (biscuit)				$ 70.12
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
5	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
6	2159061		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202875)			Immediately	$ 183.67
6	2177311		Door Gasket, Magnetic (black)   (Replaces: 2202882)				$ 315.19
7	2159292		Trivet				$ 38.17
8	2324038		Nameplate   (Replaces: 13035001)				$ 68.18
9	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 118.40
10	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
11	W11023679		Freezer Door (includes Illus. 14 & 15) (white)   (Replaces: 2182489)				$ 722.23
11	W11023688		Freezer Door (includes Illus. 14 & 15) (biscuit)   (Replaces: 2204686)		Appelez-nous	-
11	2225438		Freezer Door (includes Illus. 14 & 15) (stainless Steel)		Appelez-nous	-
11	W11023687		Freezer Door (includes Illus. 14 & 15) (black)   (Replaces: 2200711)				$ 767.09
12	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.40
12	WP2200936		Hole Plug, Handle (biscuit)   (Replaces: 2200936)				$ 7.59
12	WP2189009		Hole Plug, Handle (black)   (Replaces: 2189009)				$ 7.25
13	WP2188236		Shelf, Flip-up   (Replaces: 2188236)				$ 61.31
14	WP2314293		Thimble   (Replaces: 2314293)				$ 7.19
15	2177310		Door Gasket, Magnetic (black)   (Replaces: 2214969)				$ 319.34
15	2159060		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214967)				$ 320.01
16	WP2204812		Bin, Door Shelf   (Replaces: 2204812)				$ 76.62
17	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
18	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
19	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.61
19	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.80
19	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 23.06
20	WP2156007		Plug-trim   (Replaces: 2156007)			Immediately	$ 7.65
21	WP2156006		Plug, Trim   (Replaces: 2156006)			Immediately	$ 12.18
22	WP2218118		Compartment Door   (Replaces: 2218118)				$ 78.02
23	2320412W		Handle, Freezer (white)		Appelez-nous	-
23	2320412B		Handle, Freezer (black)		Appelez-nous	-
23	2320412T		Handle, Freezer (biscuit)		Appelez-nous	-
24	WPW10421486		Trim, Door   (Replaces: 2195948)				$ 109.28
