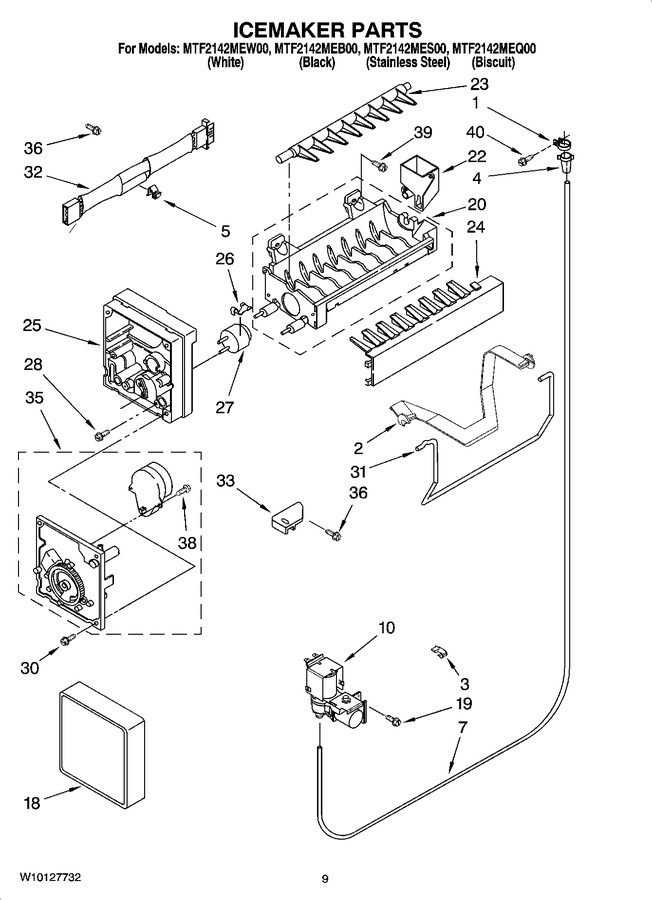

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488878		Clamp, Tube   (Replaces: 488878)				$ 11.60
2	78562001		Adjuster-ice Level		Appelez-nous	-
3	2210495		Clip, Water Valve		Appelez-nous	-
4	4387491		Insert, Tube   (Replaces: 2181939)				$ 7.84
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 10.57
7	W10823511		Tube Water   (Replaces: 2181943)			Immediately	$ 32.41
10	WP2315576		Valve Solenoid   (Replaces: 2315576)			Immediately	$ 95.98
18	79191001		Cover		Appelez-nous	-
19	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
20	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: 628228)				$ 233.15
22	W10122561		Cup, Water Fill   (Replaces: 628515)				$ 27.77
23	WP627843		Ejector   (Replaces: 627843)				$ 83.60
24	WP2182124		Ice Striper   (Replaces: 2182124)				$ 86.05
25	WP2195914		Support   (Replaces: 2194712)				$ 104.57
26	WP2315522		Retainer,thermostat   (Replaces: 2315522)				$ 11.05
27	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 627985)				$ 109.18
28	8533917		Screw				$ 13.37
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
31	W10138107		Shut Off Arm		Appelez-nous	-
32	WP2187464		Harness, Wiring   (Replaces: 2187464)				$ 124.57
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 32.17
35	W10190935		Module Assembly (includes Item 38)   (Replaces: 626680)			Immediately	$ 110.07
36	WP489478		Screw   (Replaces: 489478)				$ 7.75
38	489136		Screw, 3-24 X 23/64				$ 10.29
39	WP488163		Screw   (Replaces: 488208)				$ 7.54
40	WP488787		Screw, 8-18 X 1/2   (Replaces: 488886)				$ 10.58
100	4317943		Icemaker,complete Assembly   (Replaces: 626636)			Immediately	$ 188.95
