SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

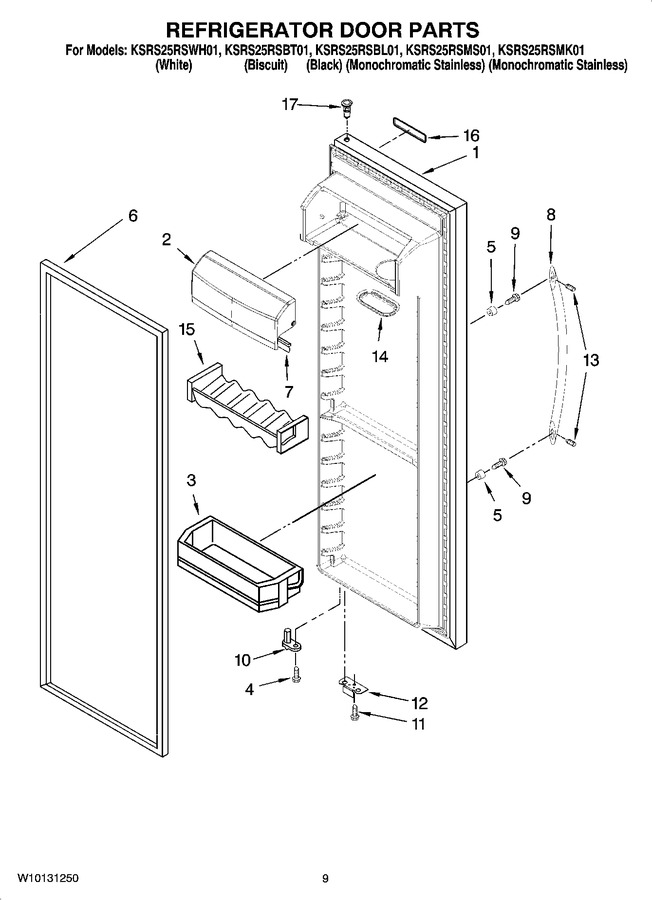

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2303139T		Refrigerator Door (includes Item 6) (biscuit)		Appelez-nous	-
1	2303139B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2303139SAP		Refrigerator Door (includes Item 6) (stainless Steel)		Appelez-nous	-
1	2303139W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	2301486		Door Compartment (includes 7)		Appelez-nous	-
3	WP2223434K		Door Bin (4)   (Replaces: 2223434K)			Immediately	$ 102.08
4	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
5	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
6	WPW10136734		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326338)				$ 335.39
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
7	2159124		Gasket		Appelez-nous	-
8	2319727B		Handle (includes 13) (black)				$ 109.87
8	2319727S		Handle (includes 13) (stainless)				$ 133.96
8	2319727W		Handle (includes 13) (white)				$ 106.80
8	2319727T		Handle (includes 13) (biscuit)		Appelez-nous	-
9	WP488163		Screw   (Replaces: 488208)				$ 7.92
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2303113B		Bracket, Door Stop (black)		Appelez-nous	-
12	2303113		Bracket, Door Stop (chrome)		Appelez-nous	-
13	W11366418		Screw, Set (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
13	WPW10010150		Screw, Set (black)   (Replaces: W10010150)				$ 8.57
14	2165792K		Butter Dish				$ 9.72
15	2193409K		Beverage Holder (2)		Appelez-nous	-
16	W10046610		Nameplate (stainless)				$ 33.40
16	W10046700		Nameplate (biscuit)		Appelez-nous	-
16	WPW10243393		Nameplate (white)   (Replaces: W10046670)				$ 69.98
16	WPW10243392		Nameplate (black)   (Replaces: W10046640)				$ 73.70
17	WP2182181		Thimble, Top   (Replaces: 2303107)				$ 8.15
