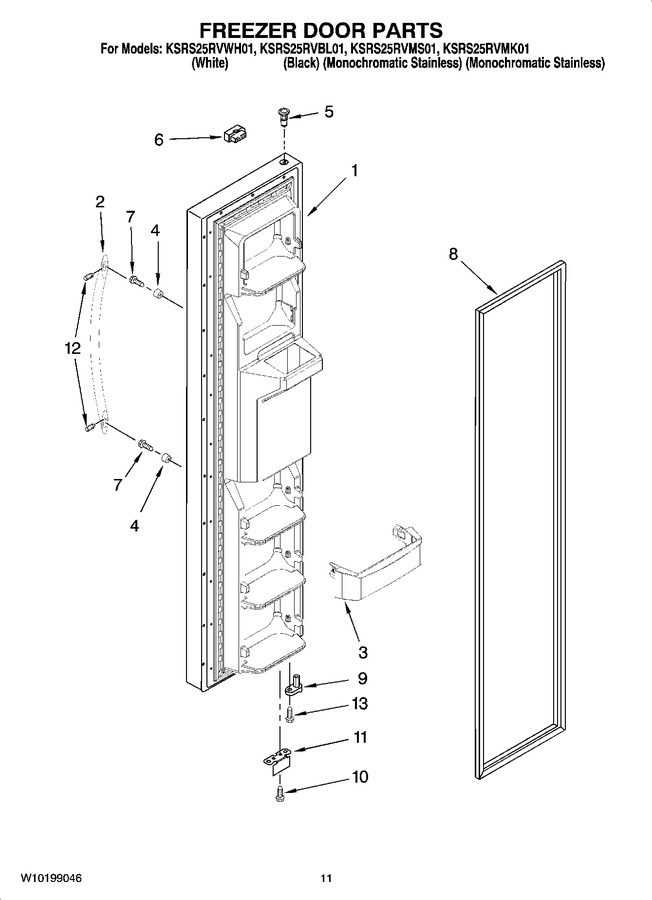

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10149807		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10149763		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10149880		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	2319727W		Handle (includes 15) (white)				$ 106.80
2	2319727S		Handle (includes 15) (stainless)				$ 133.96
2	2319727B		Handle (includes 15) (black)				$ 109.87
3	2223559K		Trivet (3)		Appelez-nous	-
4	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
5	WP2182181		Thimble, Top   (Replaces: 2303107)				$ 8.15
6	2154472		Connector		Appelez-nous	-
7	WP488163		Screw   (Replaces: 488208)				$ 7.92
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
8	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
9	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 21.16
10	WP489483		Screw   (Replaces: 489420)				$ 11.41
11	2303113B		Bracket, Door Stop (black)		Appelez-nous	-
11	2303113		Bracket, Door Stop (chrome)		Appelez-nous	-
12	WPW10010150		Screw, Set (black)   (Replaces: W10010150)				$ 8.57
12	W11366418		Screw, Set (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
13	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
	2310075		Wire Assembly, Freezer Door		Appelez-nous	-
	2305405		Tube, Water Dispenser		Appelez-nous	-
