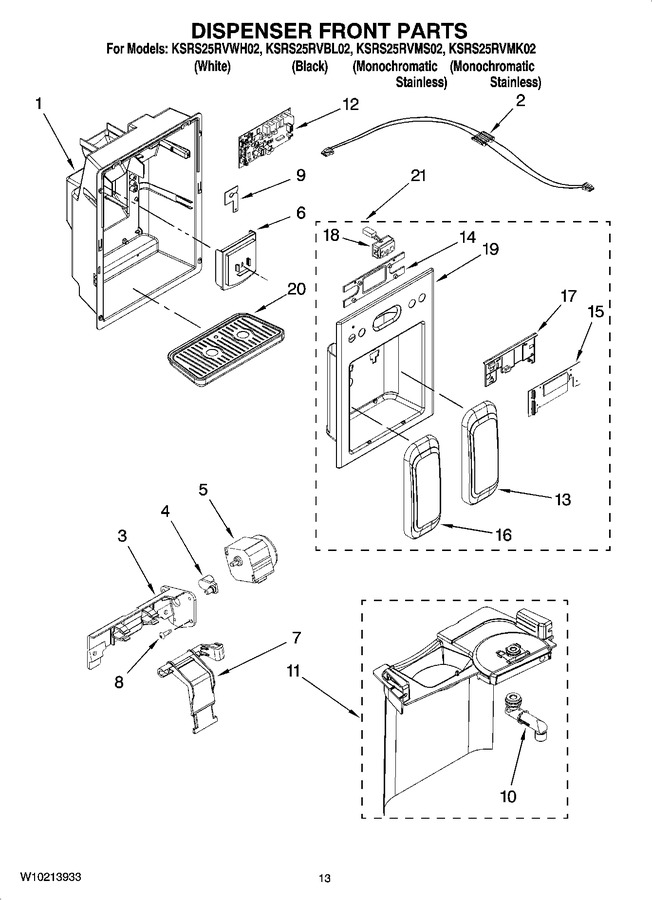

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W10178851		Wire Assy, Ui		Appelez-nous	-
3	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 101.60
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 101.82
5	WPW10184813		Motor, Ice Door   (Replaces: 2305262)			Immediately	$ 108.33
6	WP2305258		Door, Ice   (Replaces: 2305258)				$ 26.09
7	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 92.63
8	WP4449745		Screw (4)   (Replaces: 4449745)				$ 7.98
9	2305447		Clip, Wiring		Appelez-nous	-
10	W10187441		Spigot				$ 119.98
11	2305456		Separator Assembly				$ 52.30
12	WP2303843		Electronic Control (core)   (Replaces: 2303843)				$ 365.39
13	W10133606		Pad, Water (for Monochromatic Stainless Model)   (Replaces: 2305307AS)				$ 335.00
13	2305307CE		Pad, Water (for White Model)				$ 134.21
13	W10133603		Pad, Water (for Black Model)   (Replaces: 2305307GE)			Immediately	$ 339.20
14	2305287		Lens, Front Cover		Appelez-nous	-
15	WP2321746		Cover, Electronic Control (user Interface)   (Replaces: 2321746)			Immediately	$ 318.84
16	W10133603		Pad, Ice (for Black Model)   (Replaces: 2305306GE)			Immediately	$ 339.20
16	W10133606		Pad, Ice (for Monochromatic Stainless Model)   (Replaces: 2305306AS)				$ 335.00
16	2305306CE		Pad, Ice (for White Model)		Appelez-nous	-
17	2305219		Cover, Pc Board				$ 92.99
18	W10222215		Led Assembly   (Replaces: 2305342)				$ 154.54
20	2323096NO		Tray, Housing (nickel One)		Appelez-nous	-
20	2315111W		Tray, Housing (white)		Appelez-nous	-
20	2315111B		Tray, Housing (black)		Appelez-nous	-
21	2305312B		Front Cover Assembly (includes Items 13, 14, 16, 17, 20 & 21) (black)				$ 442.46
21	2305312W		Front Cover Assembly (includes Items 13, 14, 16, 17, 20 & 21) (white)		Appelez-nous	-
21	W10190186		Front Cover Assembly (includes Items 13, 14, 16, 17, 20 & 21) (stainless)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
