SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door

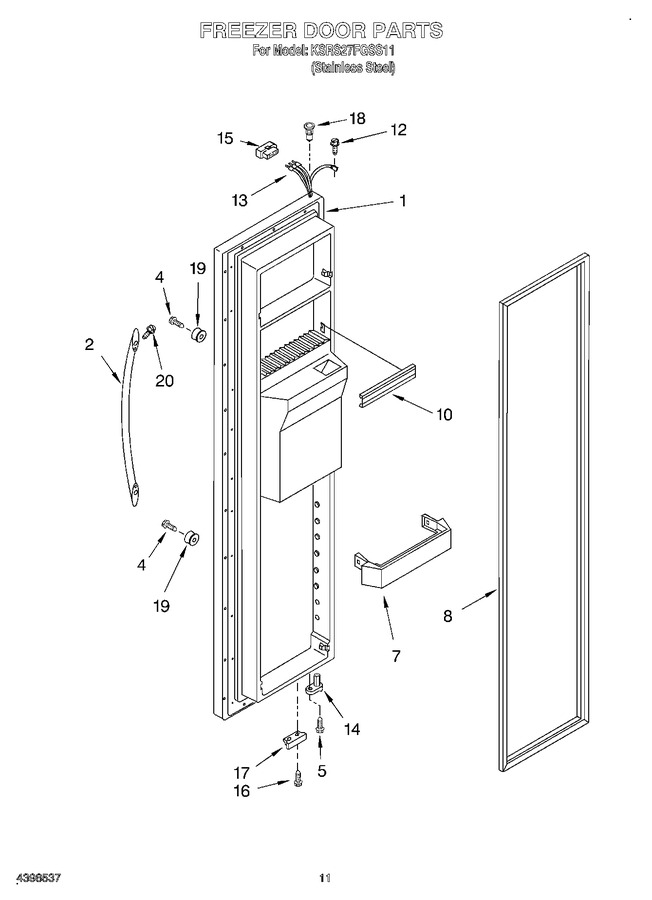

07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Unit


12 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205913		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	2204454		Handle (stainless Steel)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 7.82
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159082		Door Gasket, Magnetic (service) (black)				$ 316.66
10	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 23.11
12	WP489128		Screw   (Replaces: 8281149)				$ 10.88
13	2187270		Wire Harness		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
15	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	2155331		Bracket, Door Stop		Appelez-nous	-
18	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
19	2203690		Stud, Handle		Appelez-nous	-
20	98654		Set Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
