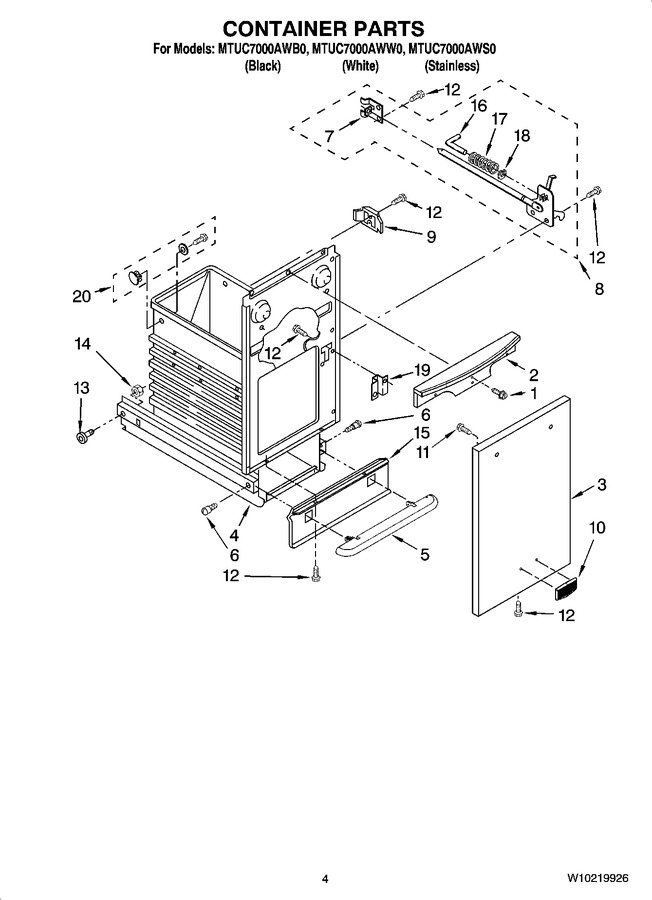

04 - Container Parts


05 - Panel And Control Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3400888		Screw   (Replaces: 3400888)				$ 7.50
2	WP9871267		Handle, Container (black)   (Replaces: 9871267)				$ 301.60
3	W10190311		Panel, Container (stainless)		Appelez-nous	-
3	W10190309		Panel, Container (white)		Appelez-nous	-
3	W10190310		Panel, Container (black)		Appelez-nous	-
4	WPW10451276		Container Assembly   (Replaces: 9870934)				$ 510.52
5	W11636605		Pedal, Foot (black)   (Replaces: 9871989B)				$ 65.88
6	WP780263		Screw, Shoulder   (Replaces: 780263)				$ 8.34
7	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
8	675379		Latch Assembly   (Replaces: 9870066)				$ 182.53
9	9871125		Spring, Safety Switch				$ 29.37
10	W10021870		Nameplate				$ 128.26
11	WP3196175		Screw   (Replaces: 3196175)			Immediately	$ 7.55
12	WP489478		Screw   (Replaces: 489478)				$ 8.18
13	WP9871602		Container, Bearing Roller   (Replaces: 9871602)				$ 13.87
14	WP776356		Locknut   (Replaces: 776356)				$ 8.53
15	WPW10242557		Plate, Toe Guard (black)   (Replaces: 777328)				$ 142.53
16	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
17	775736		Spring, Latch				$ 93.80
18	W11679168		Ring, ''e''   (Replaces: 775735)		Appelez-nous	-
19	775665		Plate, Latch				$ 62.39
20	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
